MODEL: US Tarp 15100-P
The US Tarp Waste Warrior 15100-P is a single stage 101" gantry that is fully hydraulic with a 60:1 hydraulic gear motor. This system includes a 4-spring aluminum arm kit. Wireless 5-function remote for full push-button convenience right from the ground or cab included. For additional options or configurations needed, please contact us at 786-708-6662

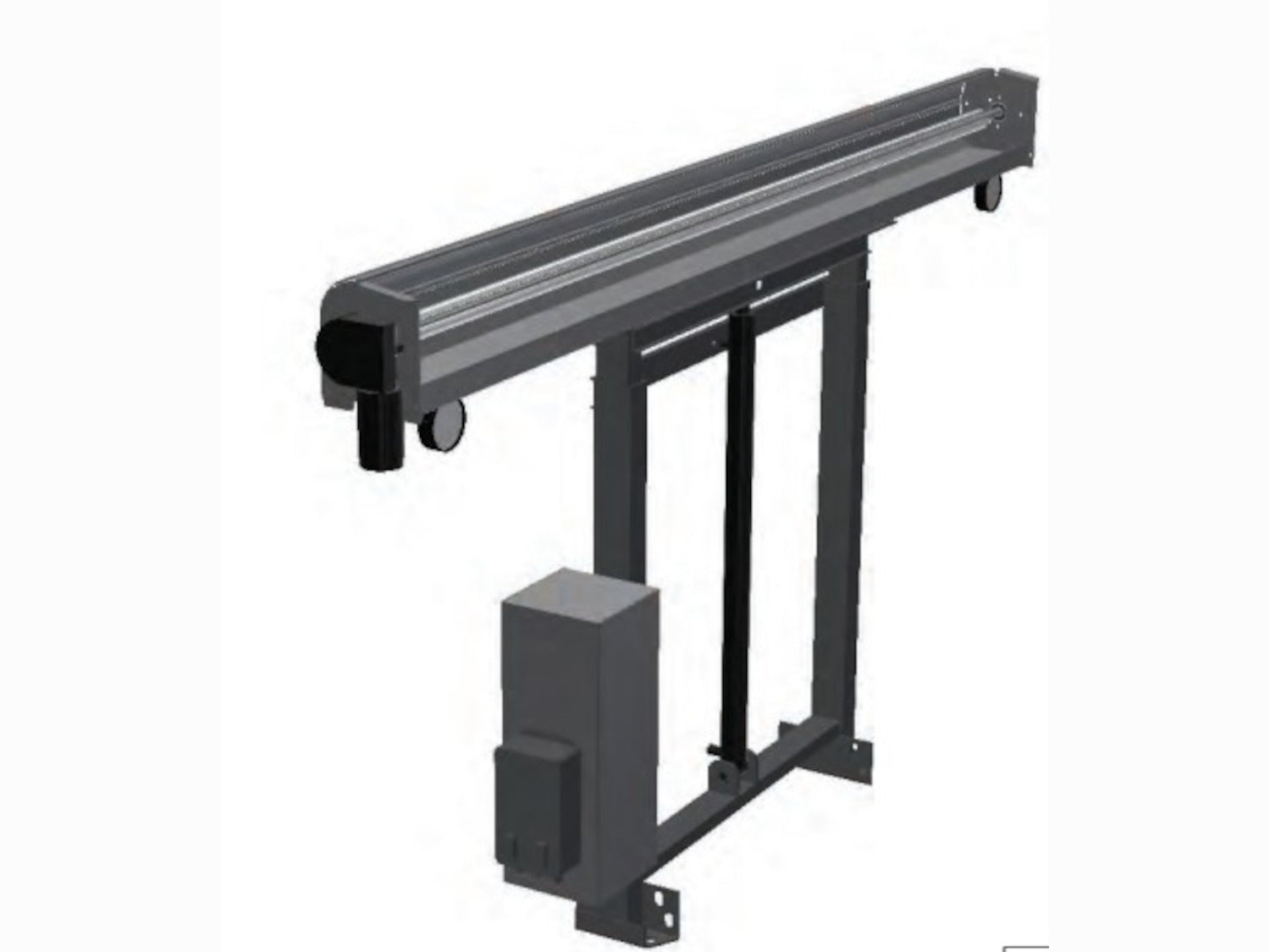

Waste Warrior 15100 Single Stage Gantry Kit Includes:
- 58" Heavy duty power-coated steel frame - 101" fully extended
- 90" aluminum waste housing
- 60:1 hydraulic gear motor
- Priority flow divider for PTO hook-up

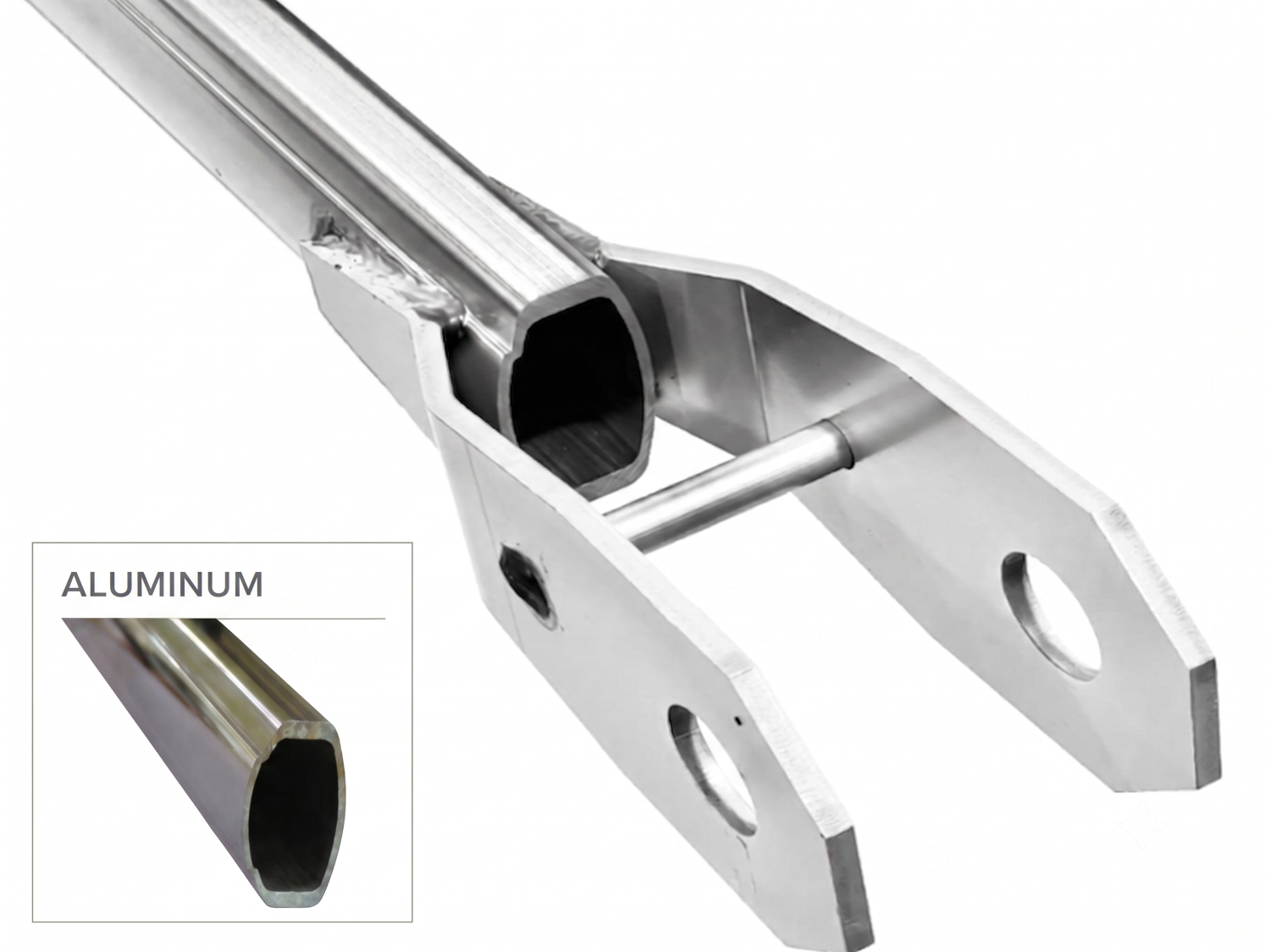

- 4-spring aluminum arm kit (contact us for other arm kit configurations or steel/bulletproof materials)
- Wireless remote and manual levers
- LED work lights, wired
- Tarp not included, but can be purchased as an option
Single Stage Gantry w/ Powerpack Specs
| SPEC | MEASUREMENT (IN) |
| Steel Frame only | 58" |
| Assembled Frame Height | 65" |
| Extends | 36" |
| Overall Height with Housing | 101" |
| Weight | 375 lbs. (assembled) without Tarp or Arm Kit |
