Tuff-Tarper Electric Refuse Tarp System | Pioneer Coverall

  • $ 3,599.00 USD

MODEL: Pioneer Tuff-Tarper HR1500E

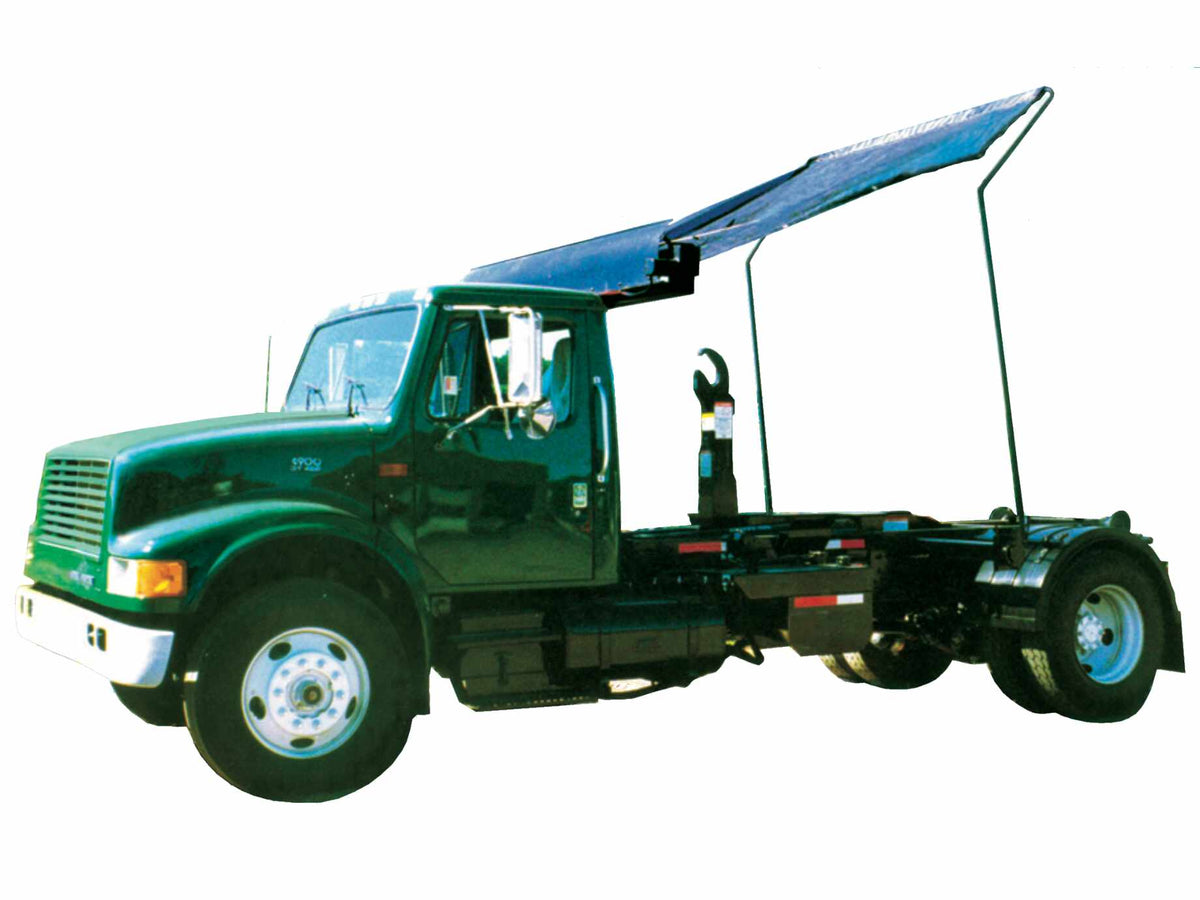

The Tuff-Tarper HR1500E electric refuse tarp system from Pioneer is an economical tarp system for small hook lift hoists. This tarp system includes a 12-volt DC direct drive right angle electric gear motor that provides steady and quiet rotation of the roller assembly and a fixed gantry. This system is capable of covering fixed height containers from 8 to 24 feet in length depending on the chosen model.

Applications: Single axle hook lift/cable hoist trucks

Standard tarp:  9’ wide expandable heavy duty mesh

Model Arm Material Arm Length Container Size
HR1500E Steel 9.5' 8' - 16'
HR1500EAL Aluminum 9.5' 8' - 16'
HR1500EX Steel 13' 16' - 24'
HR1500EXAL Aluminum 13' 16' - 24'


HR1500E Tarp System Features

  • 12-volt direct drive electric motor is easy to install and provides steady arm movement

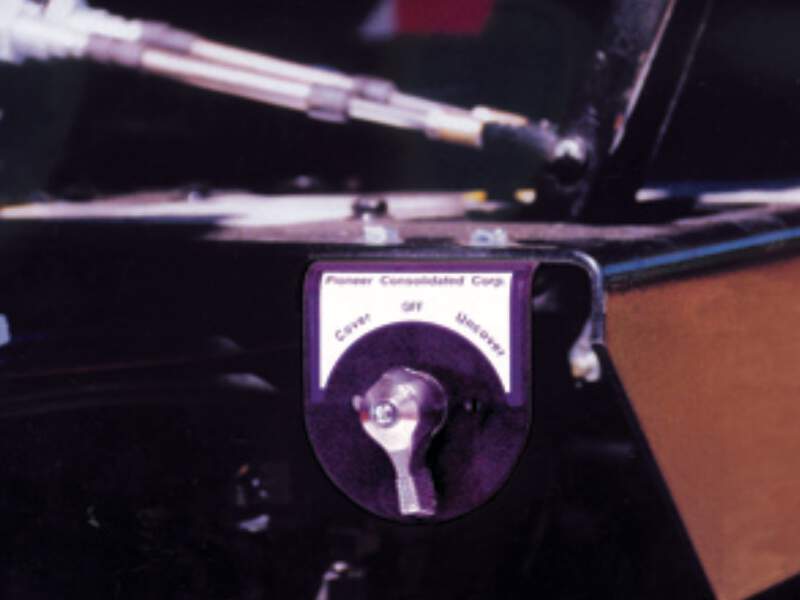

  • 2-way electrical switch powers the tarp system’s cover/uncover function

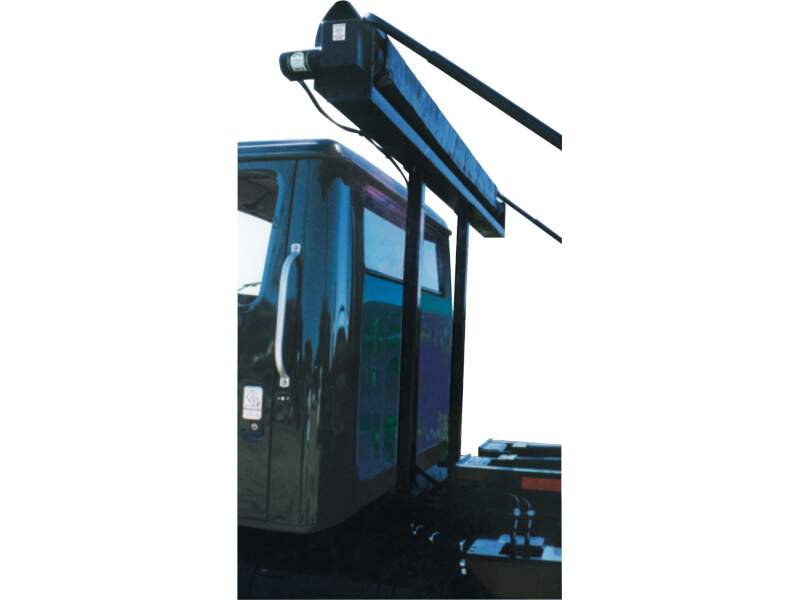

  • Stationary gantry and fixed length pivot arms

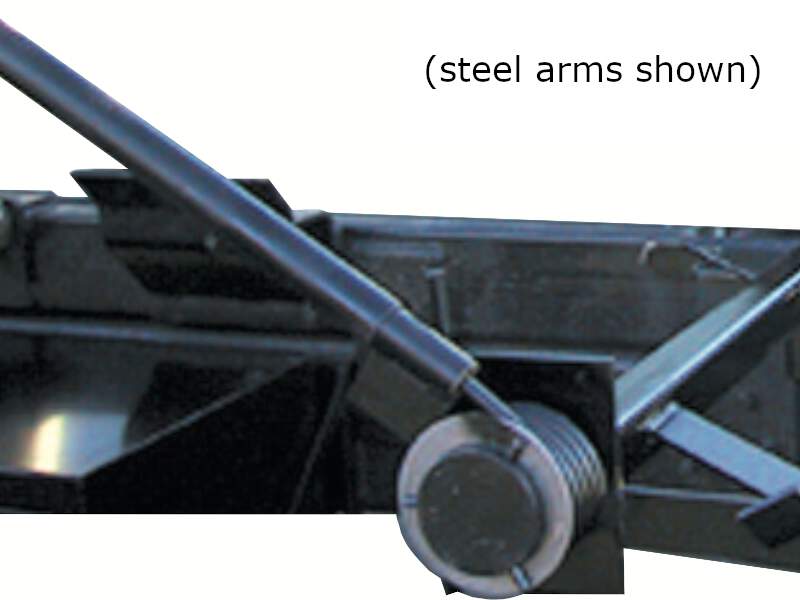

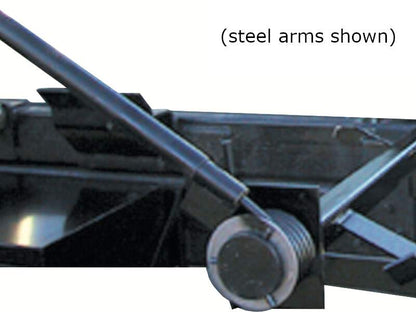

  • Heavy-duty side-mounted steel pivot arms made of 1 5/8” steel are virtually indestructible

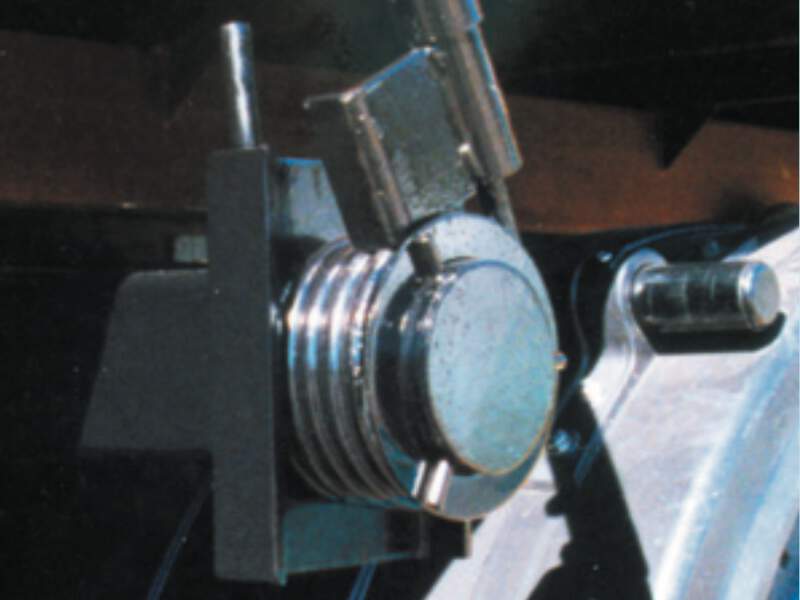

  • Reverse-wound torsion springs provide power to pivot the arms
  • 12 volt DC direct drive right angle electric motor driven gearbox for quiet, efficient operation
  • Ideal for same size containers
  • Includes heavy duty mesh tarp
