TarpMaster Electric Tarp System (5-Spring, up to 26') TM500 | Roll-Rite

  • $ 2,840.32 USD

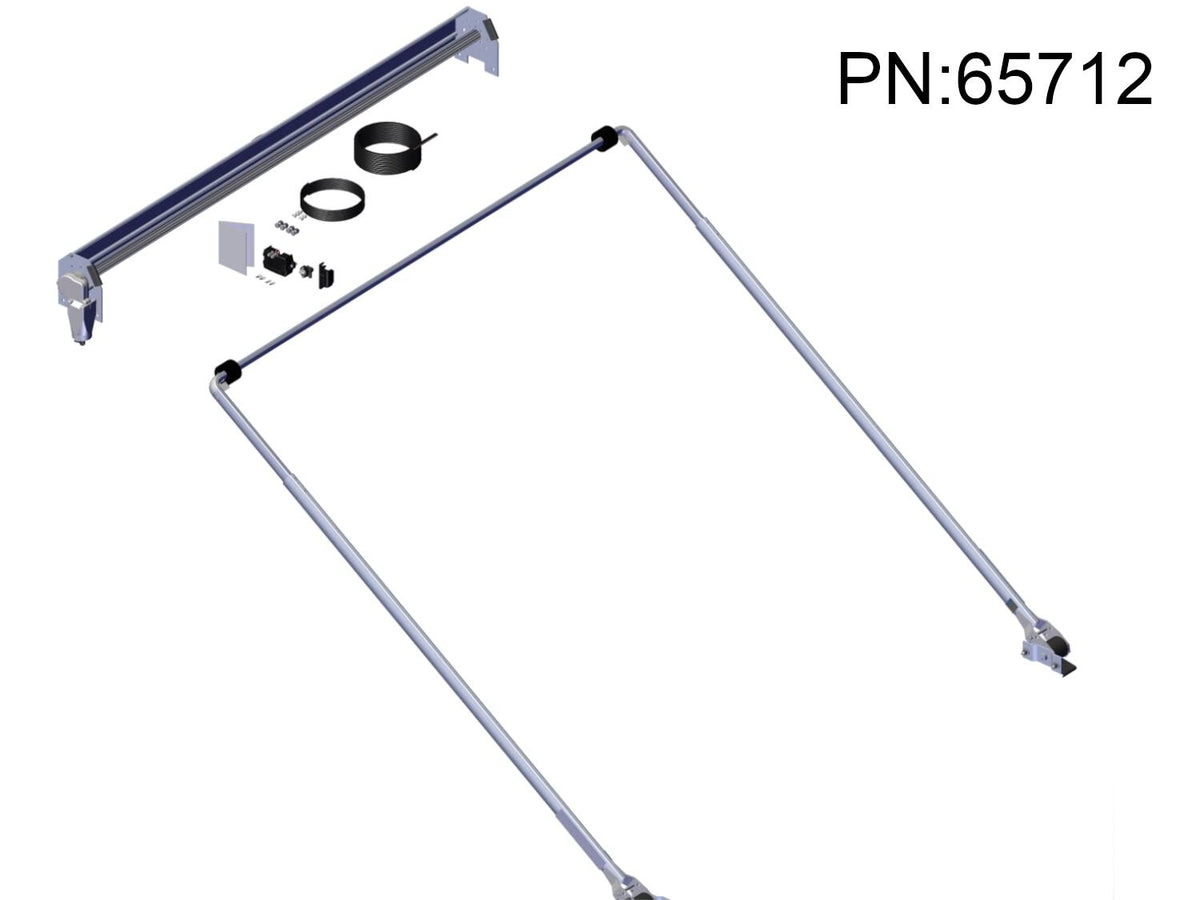

MODELS: Roll-Rite 65100, 65712

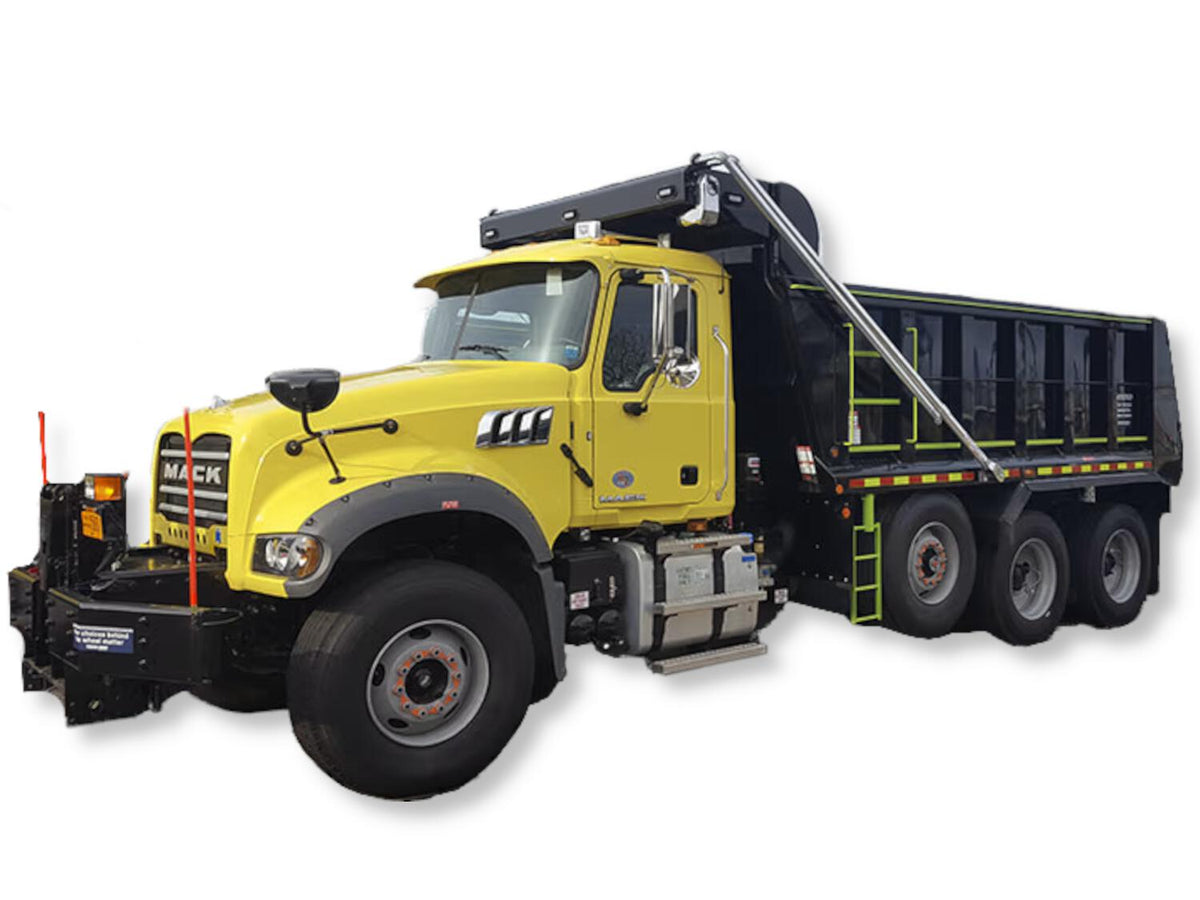

The TarpMaster® 500 Series electric tarp system from Roll-Rite is designed to fit most multi-axle industry standard dump trucks from end dumps to stone slingers, grapple trucks or silage trucks up to 26' in length. This tarp system was engineered with quality and durability in mind, with components tough enough for the demands of tarping municipal trucks, or any other commercial or industrial job. The TM500 TarpMaster® series is available in either a side mount or underbody mount pivot.


Model #
Lower Arm Length Spool Protection Tension Bow Pivot Mount
65100 84" 98" Housing No Underbody Mount
97" Wind Deflector No
Side Mount

TarpMaster Electric Tarp System Features:

  • TarpMaster Motor, industry's leading motor designed especially for high-torque demands
  • Tarp Axle with stub shaft pre-threaded and ready for installation. Pre-assembled in full housing spool kits
  • Electric Kit includes a Momentary Rocker Switch, Motor Reversing Relay, 35 Amp Breaker with installation and wiring instructions
  • Wiring includes 14ga 3-Conductor Wire (15 feet) and 6ga Dual Conductor Wire (60 feet for dump trucks), Mounting Hardware
  • Roll·Rite® tarp arms consist of a lower pivot arm and upper tarp bow. Each are made from a specially treated, high strength extruded aluminum alloy.
  • Patented arm design and special extrusion delivers the lightest, most durable tarp arm with maximum strength to weight ratio
  • Telescopic Fit tarp arms allow for easy installation and widest range of system variations
  • High Polished tarp arms are buffed and polished to a mirror-like finish
  • Pivot arm profiles are angled to avoid load zone or clear cab doors. Choice of 30º or 45º Elbows offers widest range of adjustability for a customized fit.


Available Tarp Options

Tarp Fabric Description Application
Premium Mesh
  • 7.07oz weight
  • 7.5 x 5 weave
  • Two 1,000 denier strands
  • Coated with UV-resistant PVC
General, Aggregates
Premium Heavy Duty Mesh
  • 15oz weight
  • 6 x 6 weave
  • Three 1,300 denier strands
  • High tenacity polyester
  • Coated with UV-resistant PVC
Demanding Debris
Super Tough Mesh
  • 16oz weight
  • 7 x 7 weave
  • 7,500 denier strands
  • Coated with UV-resistant PVC
  • Flexible to reduce tears & snags
Challenging Scrap, Construction & Demolition
18oz Vinyl
  • 18oz weight vinyl
  • Heavy duty waterproof vinyl
  • Cold crack resistance -40°F
Moisture Or Temperature Sensitive
  • 15oz weight vinyl
  • Urethane coating on both sides
  • Heat resistant to 400°F
  • Cold crack resistance to -22°F
