TarpMaster Electric Tarp System (3-Spring, up to 16') TM300 | Roll-Rite

  • $ 2,674.90 USD

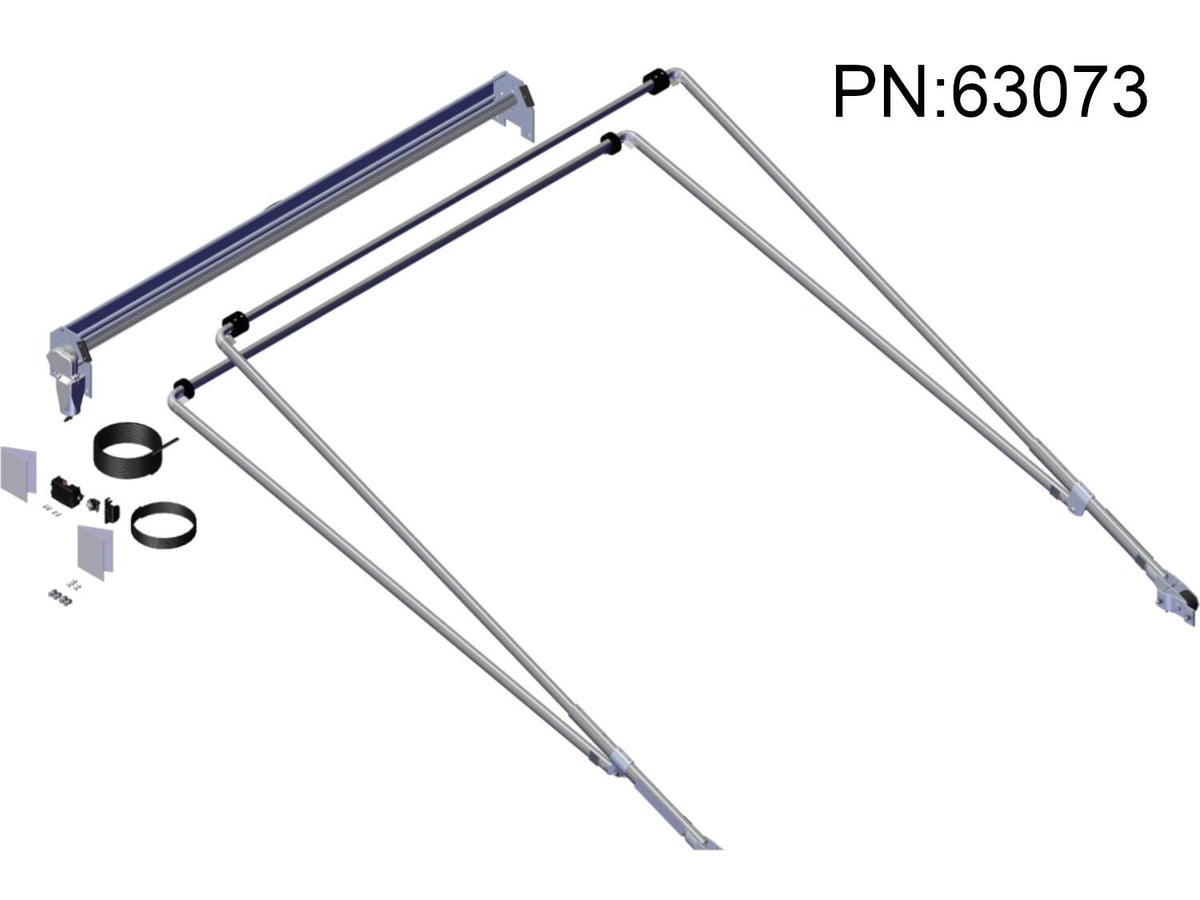

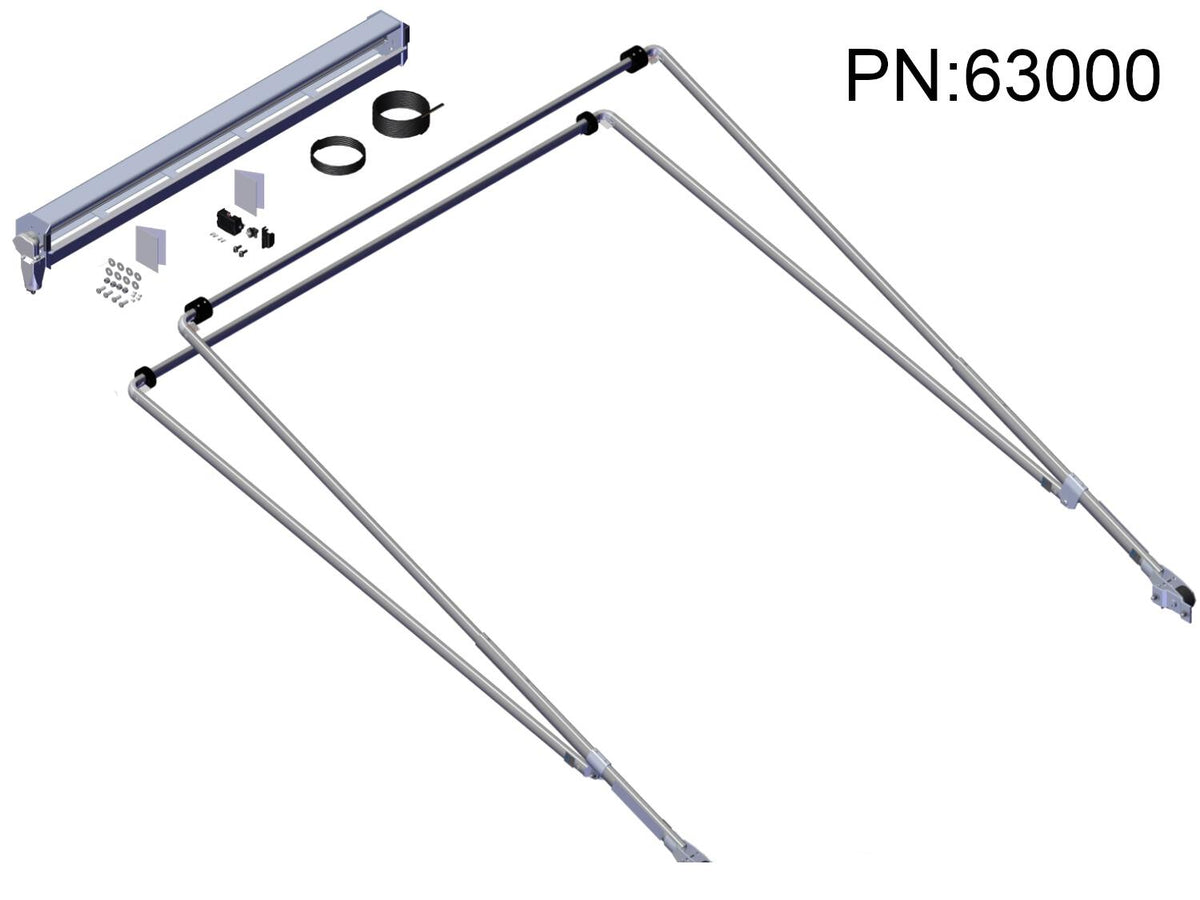

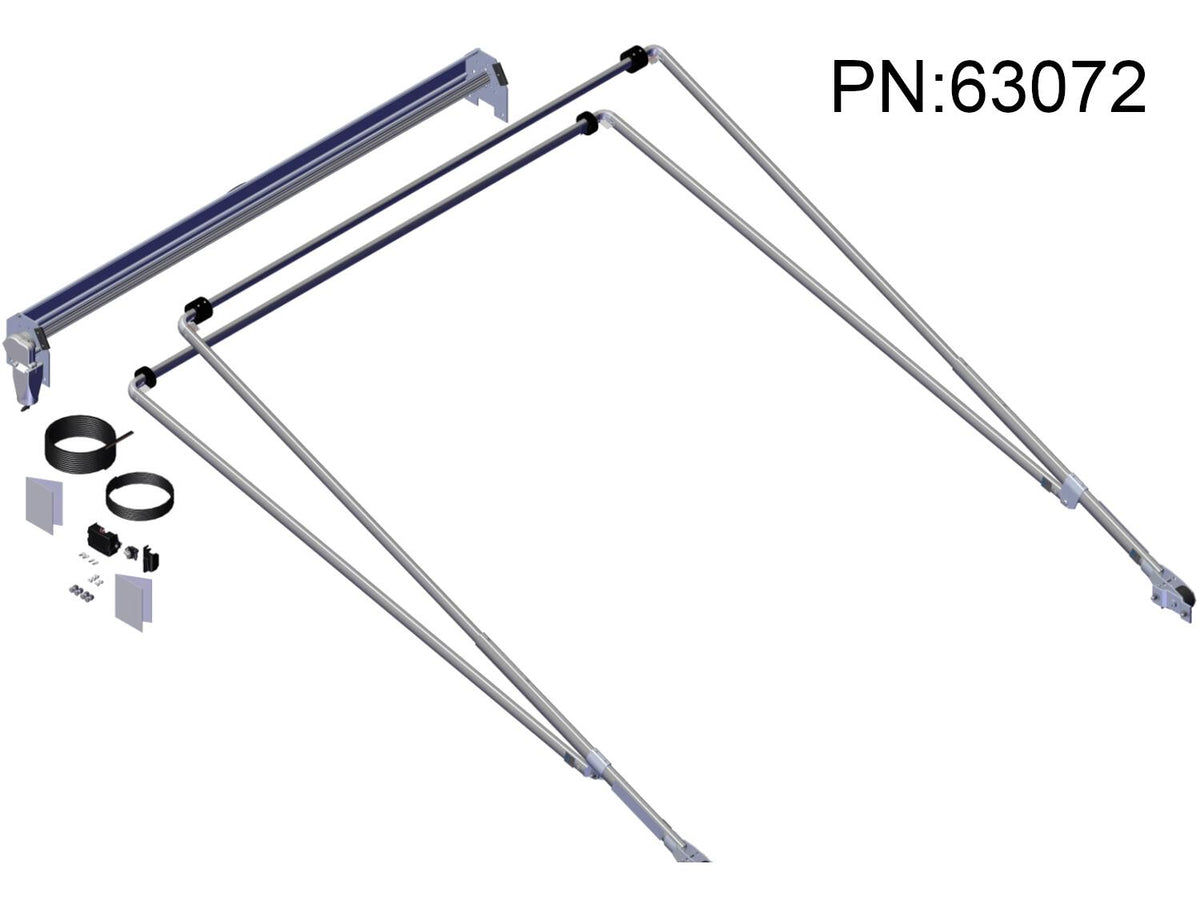

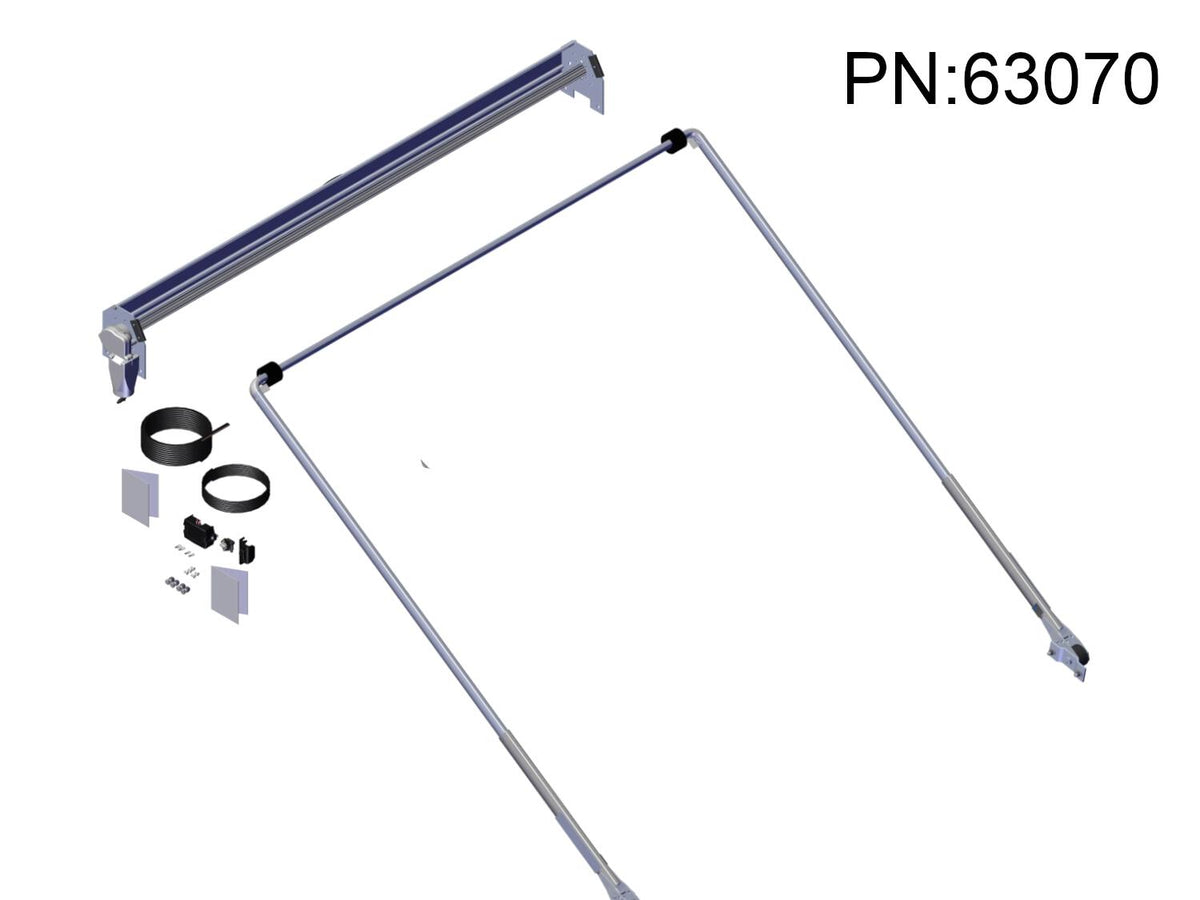

MODELS: Roll-Rite 63000, 63070, 63072, 63073

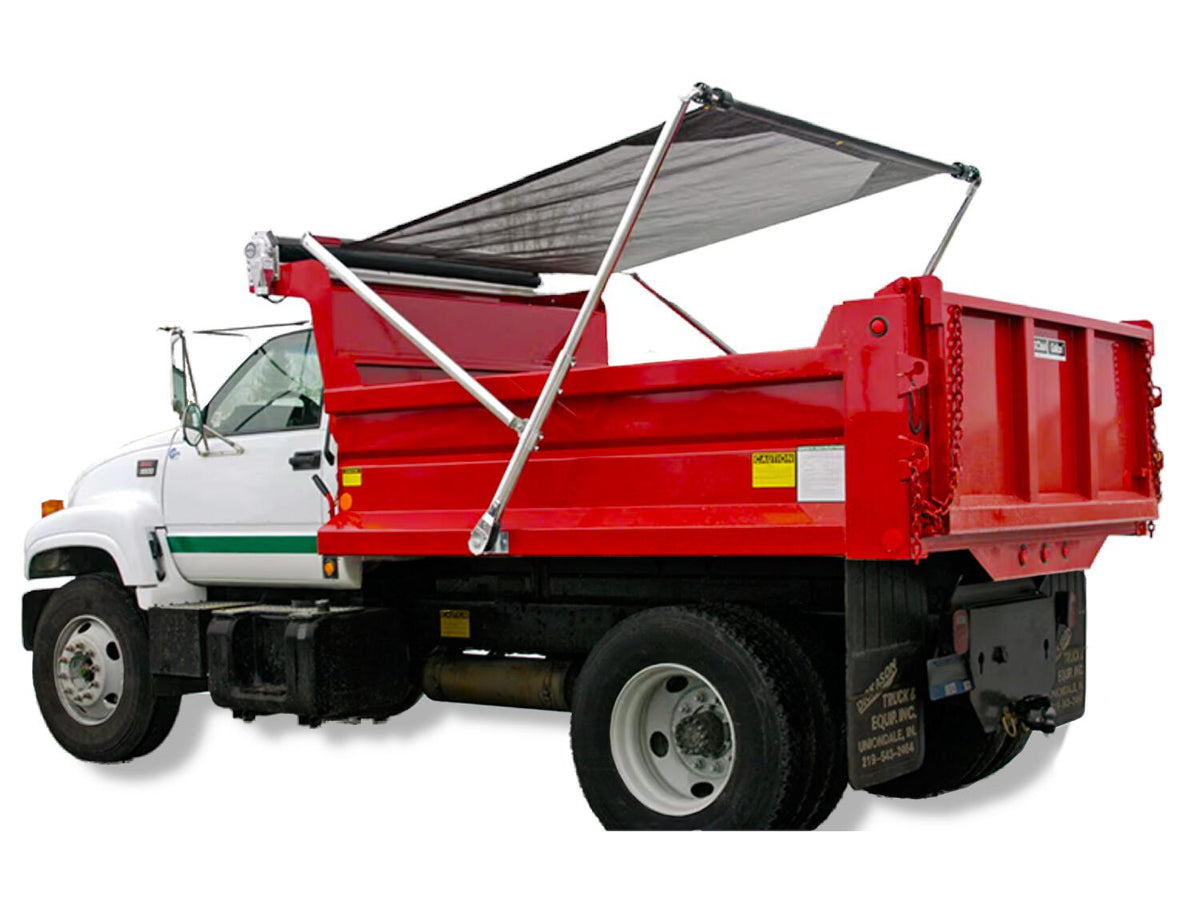

The TarpMaster® 300 Series electric tarp system from Roll-Rite is designed to fit most industry standard single axle dump trucks up to 16' in length. This tarp system was engineered with quality and durability in mind, with components tough enough for the demands of tarping municipal trucks, or any other commercial or industrial job.


Model #
Lower Arm Length Spool Protection Tension Bow Electric
63000 48" 92" Housing Yes Yes
63070 31" 97" Wind Deflector No Yes
97" Wind Deflector Yes
97" Wind Deflector

TarpMaster Electric Tarp System Features:

  • TarpMaster Motor, industry's leading motor designed especially for high-torque demands
  • Tarp Axle with stub shaft pre-threaded and ready for installation. Pre-assembled in full housing spool kits
  • Electric Kit includes a Momentary Rocker Switch, Motor Reversing Relay, 35 Amp Breaker with installation and wiring instructions
  • Wiring includes 14ga 3-Conductor Wire (15 feet) and 6ga Dual Conductor Wire (60 feet for dump trucks), Mounting Hardware
  • Roll·Rite® tarp arms consist of a lower pivot arm and upper tarp bow. Each are made from a specially treated, high strength extruded aluminum alloy.
  • Patented arm design and special extrusion delivers the lightest, most durable tarp arm with maximum strength to weight ratio
  • Telescopic Fit tarp arms allow for easy installation and widest range of system variations
  • High Polished tarp arms are buffed and polished to a mirror-like finish
  • Pivot arm profiles are angled to avoid load zone or clear cab doors. Choice of 30º or 45º Elbows offers widest range of adjustability for a customized fit.


Available Tarp Options

Tarp Fabric Description Application
Premium Mesh
  • 7.07oz weight
  • 7.5 x 5 weave
  • Two 1,000 denier strands
  • Coated with UV-resistant PVC
General, Aggregates
Premium Heavy Duty Mesh
  • 15oz weight
  • 6 x 6 weave
  • Three 1,300 denier strands
  • High tenacity polyester
  • Coated with UV-resistant PVC
Demanding Debris
Super Tough Mesh
  • 16oz weight
  • 7 x 7 weave
  • 7,500 denier strands
  • Coated with UV-resistant PVC
  • Flexible to reduce tears & snags
Challenging Scrap, Construction & Demolition
18oz Vinyl
  • 18oz weight vinyl
  • Heavy duty waterproof vinyl
  • Cold crack resistance -40°F
Moisture Or Temperature Sensitive
  • 15oz weight vinyl
  • Urethane coating on both sides
  • Heat resistant to 400°F
  • Cold crack resistance to -22°F
