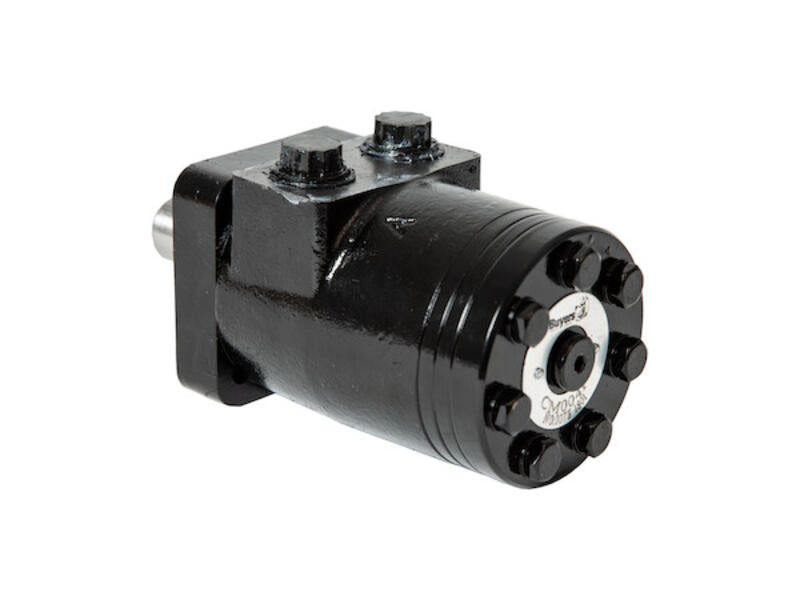

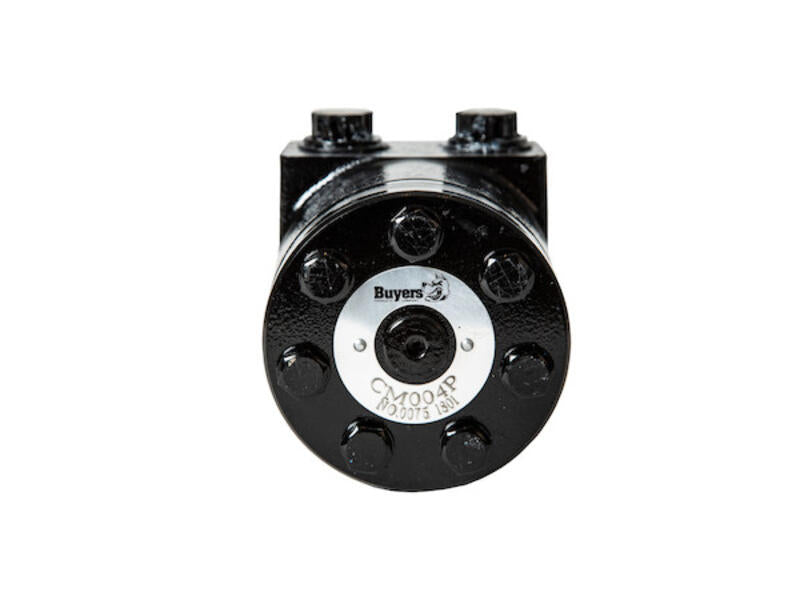

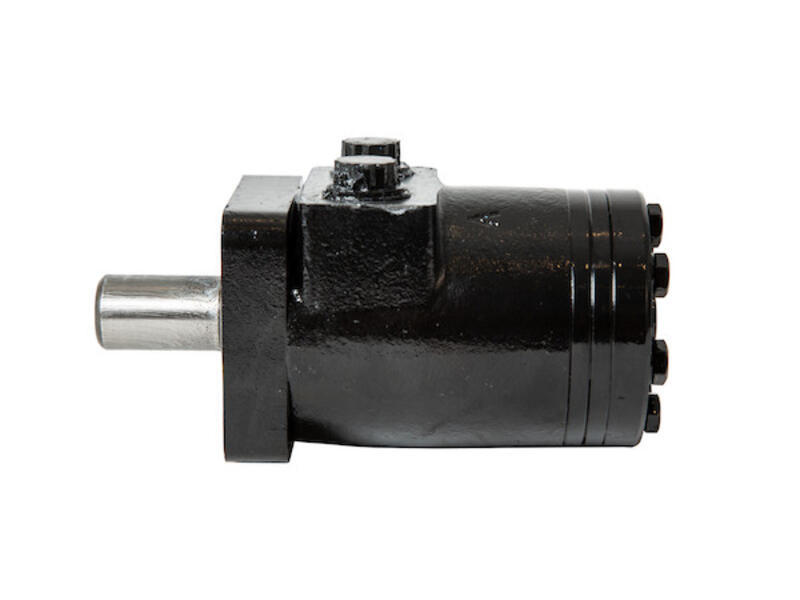

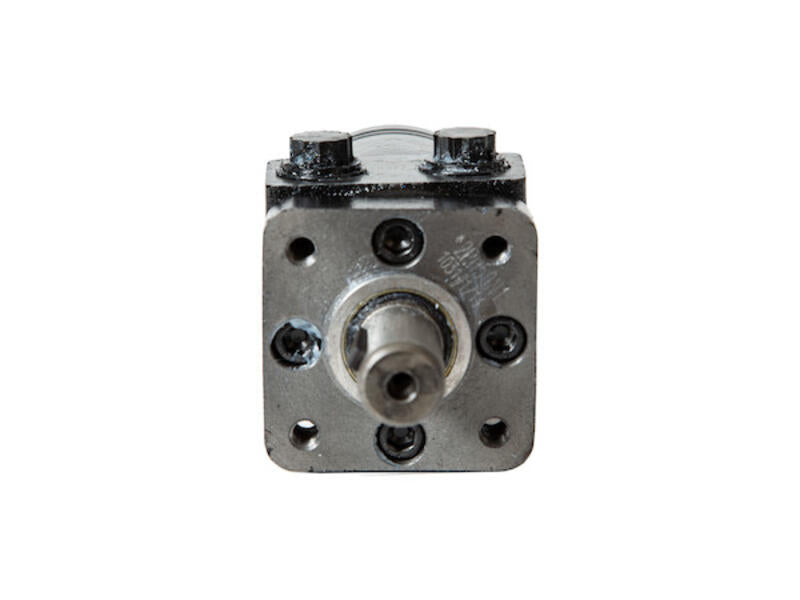

MODEL: Buyers Products CM004P
Hydraulic Spinner Motor for SaltDogg Spreaders from Buyers Products are designed to be economical, efficient, compact and powerful. They are a great solution for powering medium-duty applications like compressors, augers, winches, cranes, and spreaders.
The motors have an industry-proven spool valve design combined with state-of-the-art gerotors. They excel at jobs that need a high degree of start-up torque or just the right mixture of torque and flow rate.
Choose from a wide range of motors depending on your needs for flow rates, torque and starting torque. Each model is available with either a 2-bolt or 4-bolt mount. The last digit of the part number (2 or 4) will indicate the number of bolts.
Replacement Hydraulic 4-Bolt Spinner Motor for SaltDogg Spreaders Features:
- Designed to be economical, efficient, compact and powerful.
- Ideal for powering medium-duty applications such as compressors, augers, winches, cranes, and spreaders.
- Industry-proven spool valve design.
- State-of-the-art gerotors.
- Excellent at providing a high degree of start-up torque or the right mixture of torque and flow rate.
Replacement Hydraulic 4-Bolt Spinner Motor for SaltDogg Spreaders Specifications:
- Compares To: 101-1001-009
- Flow (Continuous): 12 GPM
- Input Mount Type: 4 Bolt
- Material: Cast Iron
- Maximum Case Pressure (Without Case Drain): 1500 PSI
- Maximum Speed (Continuous): 969 RPM
- Pilot Diameter: 1.75"
- Shaft Keyway: 0.25"
- Shaft Type: Straight
- Displacement: 3.1 in²
- Flow (Intermittent): 14 GPM
- Torque Rating (Continuous): 650 Inch Pound
- Torque Rating (Intermittent): 720 Inch Pound
- Port Size: 1/2 NPT
- Shaft Size: 1.00"
- Maximum Speed at Continuous Flow: 969 RPM
- Maximum Speed at Intermittent Flow: 1130 RPM
- Minimum Starting Torque (Continuous Pressure): 520 Inch Pound
- Minimum Starting Torque (Intermittent Pressure): 720 Inch Pound
- Pressure Δ Bar (Continuous): 1800 PSI
- Pressure Δ Bar (Intermittent): 2400 PSI
- Shipping Weight: 12.74
