Rack 'n Pinion® Roll Off Container System | Pioneer Coverall

  • $ 8,460.00 USD

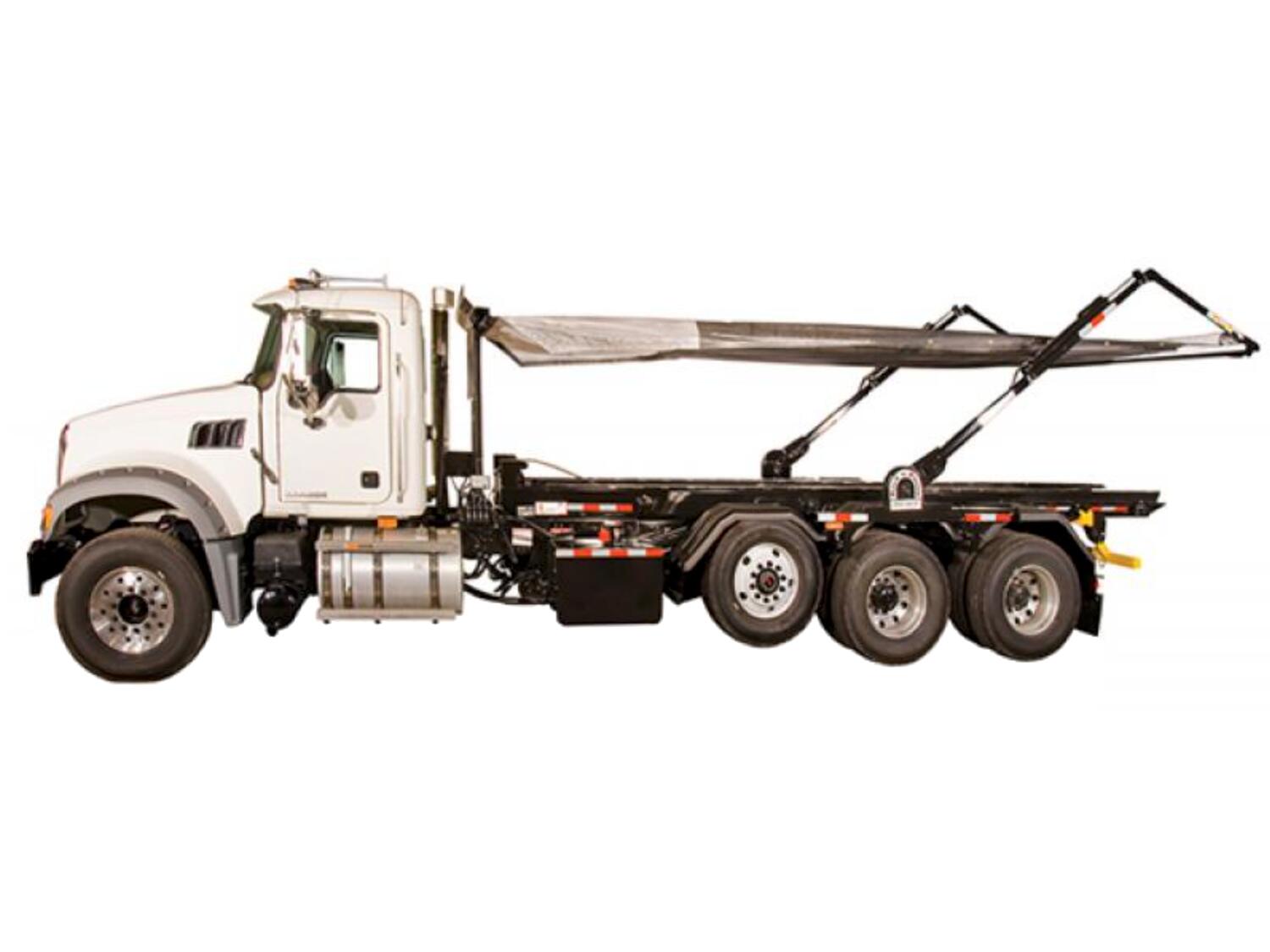

MODELS: Pioneer RP4500SAR, RP4500SARG

The Rack ‘n Pinion® roll off container tarping system has been the system of choice in the roll-off industry for over a decade. Our patented hydraulic arms and gear assembly combined with our “Strong Arm" technology and Everlast Tarp Roller produce the only fully hydraulic system known for reliability and low maintenance. The reinforced “C" Channel provides better leverage, greater control and longer life. Look for the Rack 'n Pinion tombstone as a symbol of Pioneer's industry leading tarping system.

The Rack 'n Pinion® roll off container system includes a 114" wide heavy duty mesh tarp.

Applications: Cable hoist roll off trailers
Container style/size:  Up to 24 foot containers
Standard tarp:  Heavy duty mesh


Rack 'n Pinion Tarp System Model Details:

  • RP4500SAR: fixed gantry
  • RP4500SARG: telescoping gantry

Rack 'n Pinion Tarp System Standard Features:

  • Stronger tarp arms 3/16” A5 steel with reinforced “C” channel
  • Telescoping arms with 36" stroke and nitrited rod cylinders minimize corrosion and provide longer life
  • Spring loaded Everlast roller assembly
  • Quick tarp attachment
  • Ratchet and pawl design for faster installation and easier tarp installation
  • Arms feature external cylinders for easier accessibility and maintenance
  • Offset stabilizer bar virtually eliminates roller damage
  • Telescopic arms cover containers of various heights (up to 8’) and lengths (up to 24’)
  • Industry leading 5-year non-prorated warranty covers the entire system (excludes tarp)
  • Adjustable gantry moves vertically from 60 to 90 inches
  • Roller mounted on gantry means less weight aloft which results in less stress on the framework
