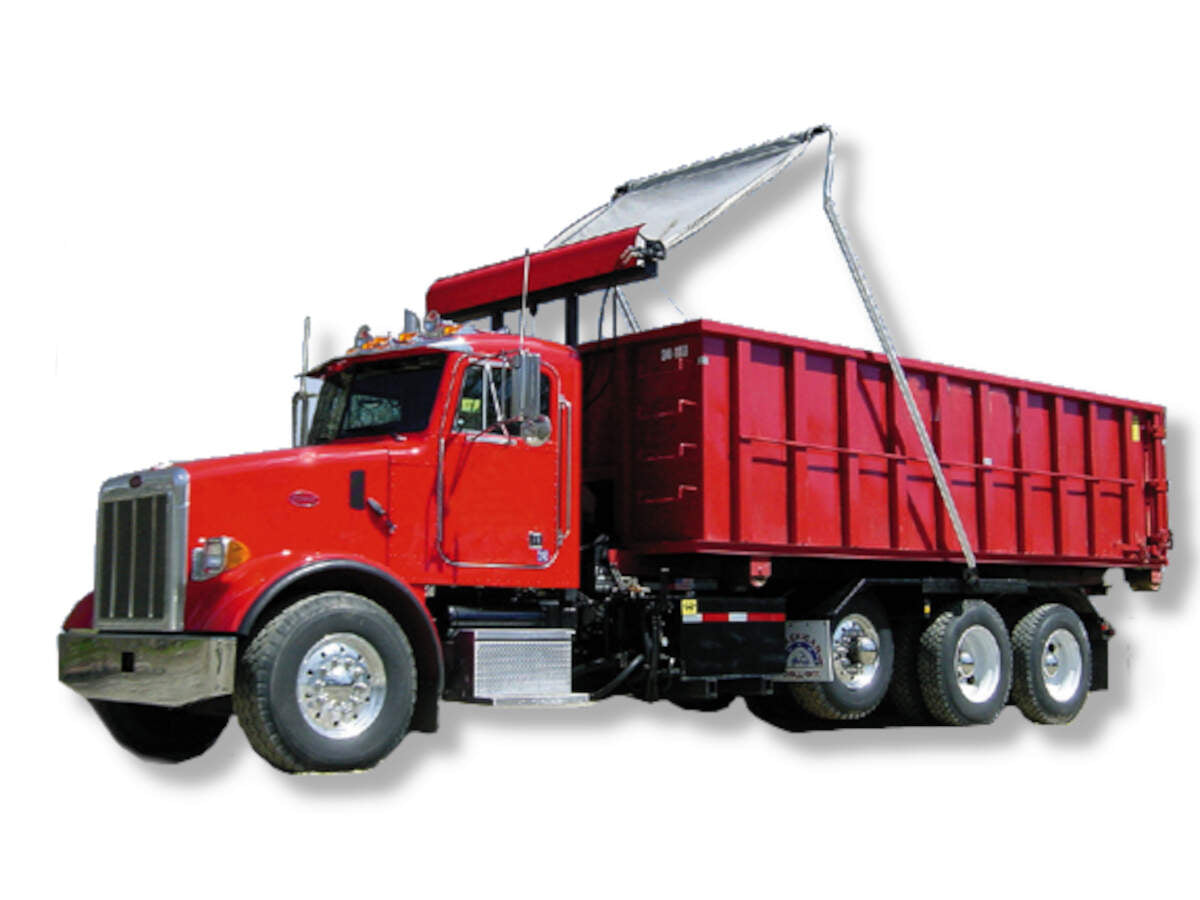

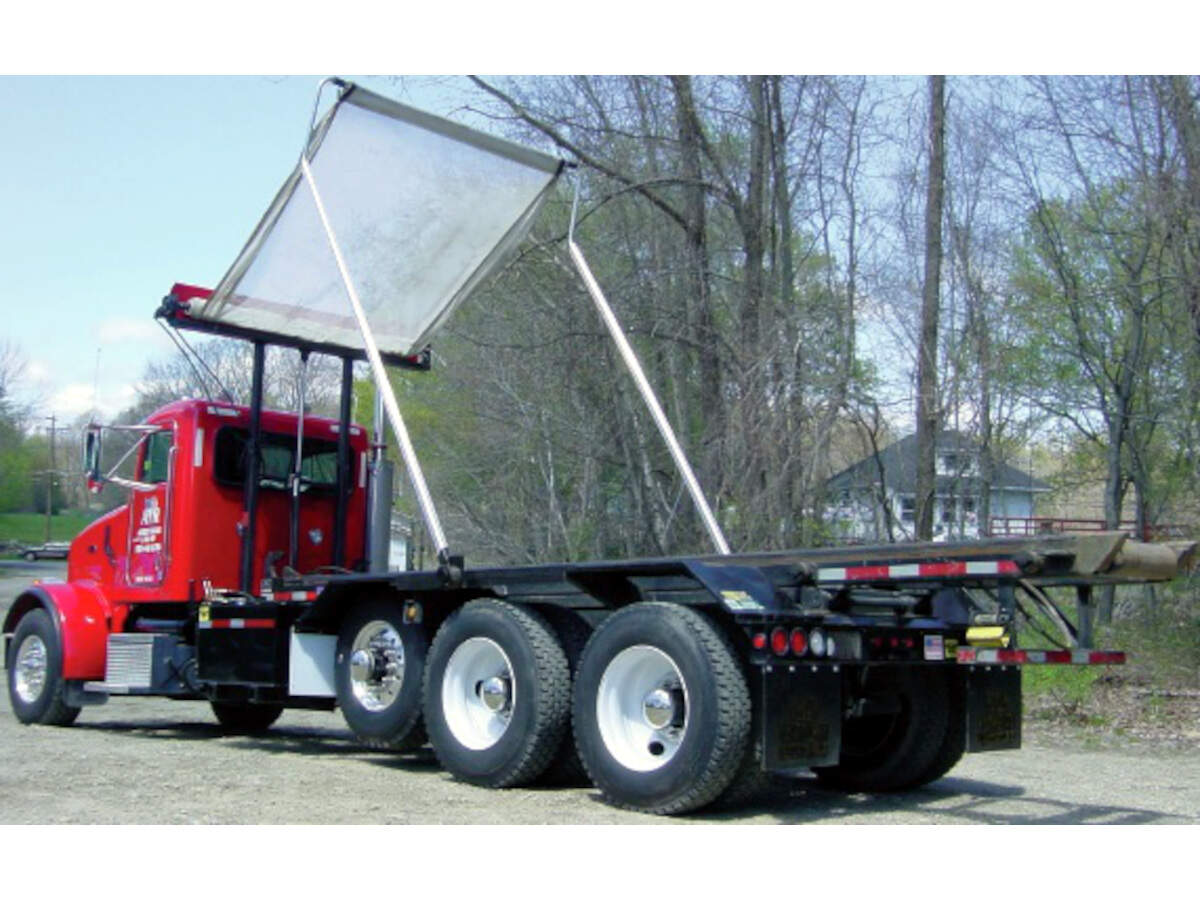

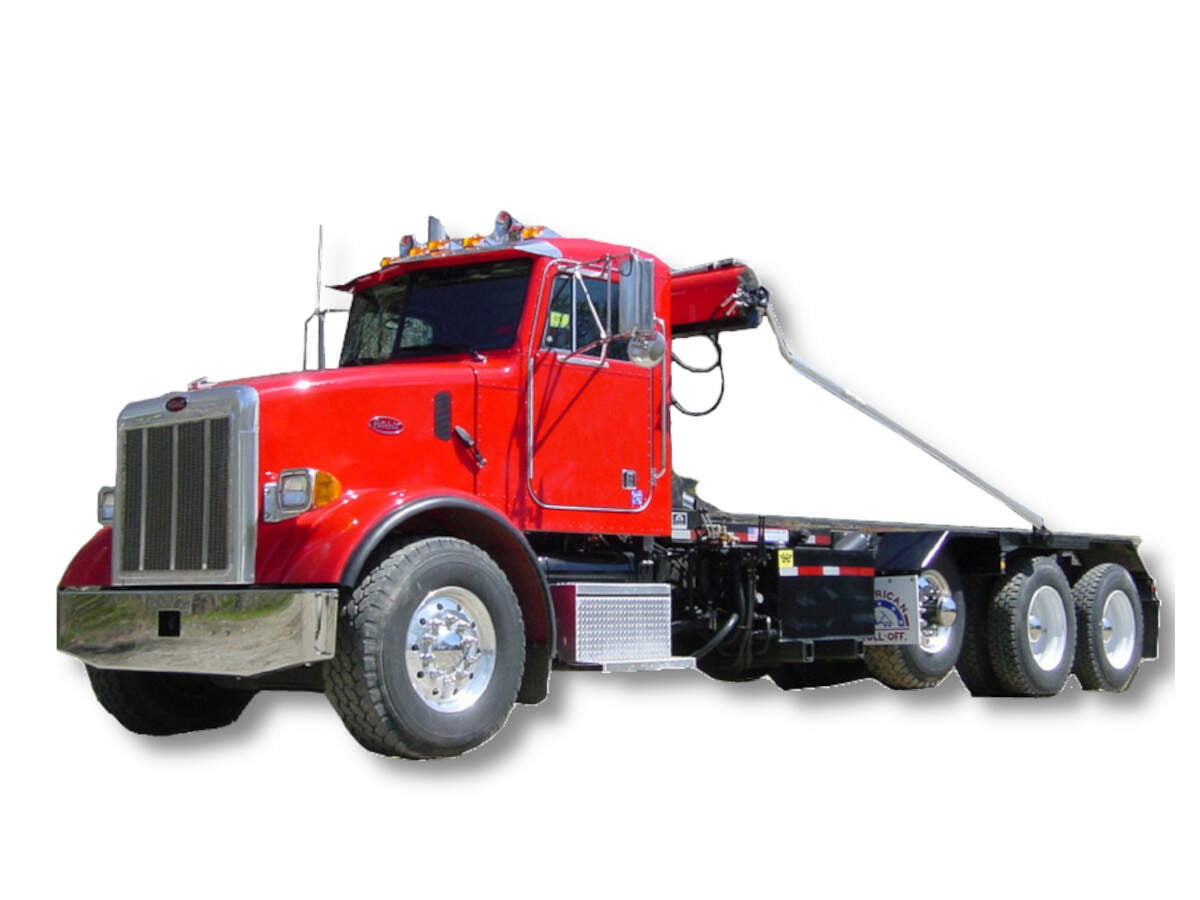

HR1500 PTO/AL Econocover Roll Off Tarp System | Pioneer Tarp

  • $5,140.31

MODELS: Pioneer HR1500PTO, HR1500PTOAL

The HR1500 PTO/AL Econocover roll off tarp system from Pioneer is their most economical pivot arm tarping solution for multi-axle roll-off trucks and hook hoists transporting containers of the same height. The hydraulic drive right angle electric gear motor provides steady and quiet rotation of the roller assembly and a fixed gantry. To cover a load, the hydraulic motor unwinds the tarp and the torsion spring-powered arms pull it toward the back. To uncover a load, the hydraulic motor winds the tarp onto the roller.

Applications: Full size hook lift/cable hoist trucks
Container style/size:  Containers up to 24' long
Standard tarp:  9’ wide expandable heavy duty mesh

HR1500PTO Tarp System Model Details:

  • HR1500PTO: Steel arms
  • HR1500PTOAL: Aluminum arms

HR1500PTO Tarp System Standard Features:

  • Fixed length pivot arms
  • Powerful, long-lasting torsion springs provide power to pivot the arms
  • Telescopic gantry can be raised up to 8’ and moves vertically from 60” to 96” to accommodate various container sizes
  • Hydraulic direct drive right angle motor driven gearbox for quiet, efficient operation
  • Ideal for same size containers
  • Powerful, long-lasting torsion spring
  • Flow diverter and control valve for cover operation are low pressure for increased safety
  • Steel pivot arms are standard, but extruded aluminum arms are available

HR1500PTO Tarp System Additional Resources
