MODELS: US Tarp 15101-54-AL4, 15101-AL4, 15101-AL7, 15101-ST4, 15101-ST7

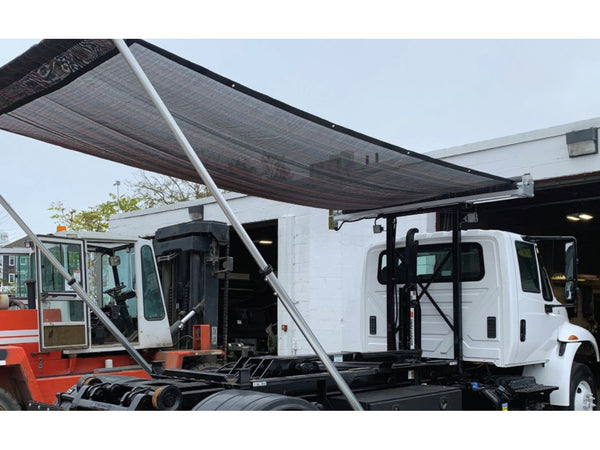

The US Tarp Waste Warrior 15101 Electric Stationary Gantry System delivers dependable, all-electric tarping performance for heavy-duty waste management on roll-off containers. Its fixed-height frame provides rugged clearance without the hassle of manual cranking or complex hydraulics. Available in 54" or 77" frames, this system is engineered to streamline container turnarounds and keep your fleet moving.
Waste Warrior Stationary Gantry Kit Includes:
- Powder-Coated Steel Frame
- Aluminum Open Top Housing
- Stationary Mounting Kit

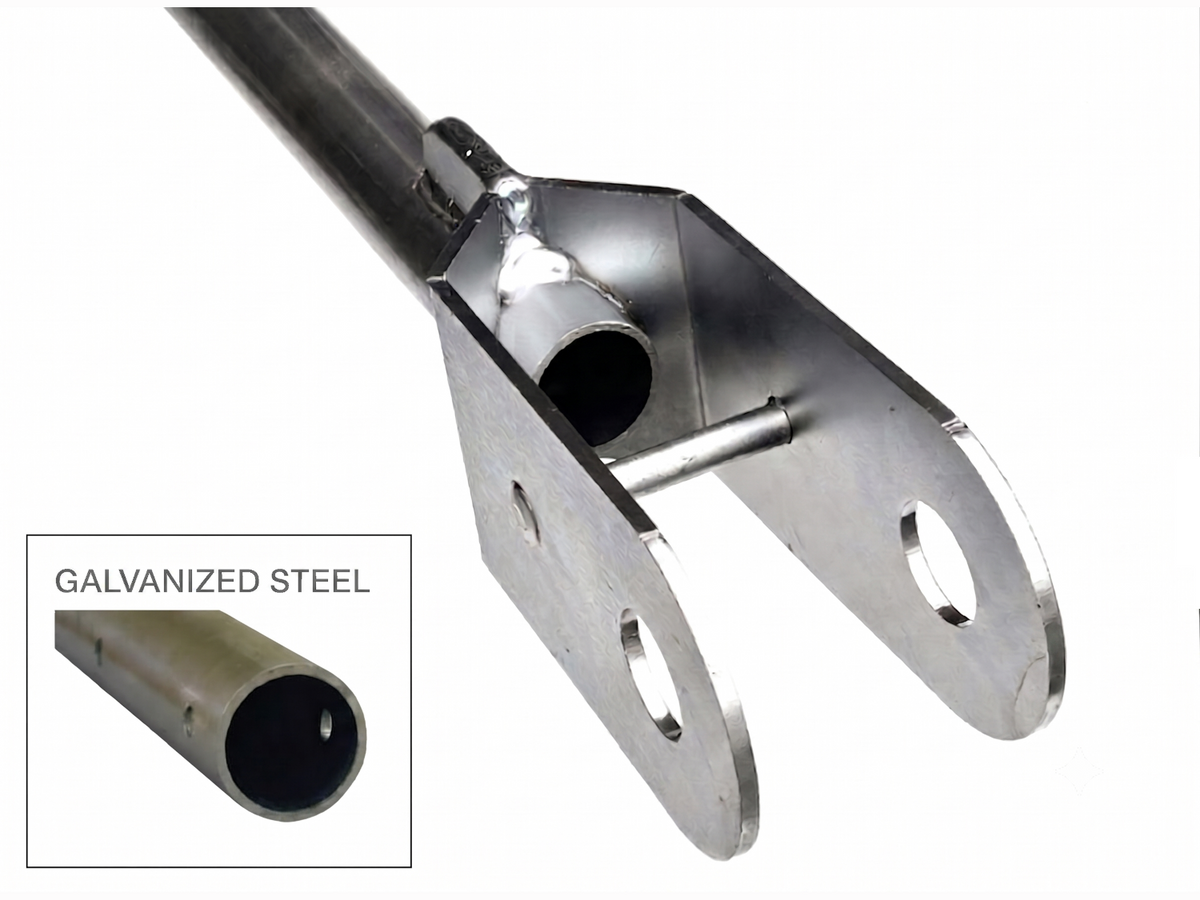

- Electric Arm Kit (Options available in Aluminum or Steel)
- EZ Switch Kit
- Tarp not included, can be purchased as an option.
Stationary Gantry Specs
| SPEC | 54" STATIONARY SPECS | 77" STATIONARY SPECS |
| Frame Height | 54" | 77" |
| Extends | N/A | N/A |
| Overall Height with Housing | 62" | 85" |
| Weight | 225 lbs. (assembled) without Tarp or Arm Kit | 300 lbs. (assembled) without Tarp or Arm Kit |
| Coverage* | Up to (but not including) 30 Yard Container | Up to (but not including) 40 Yard Container |
|
*Not Recommended for 30 Yard Containers *Not Recommended for containers over 62" tall |
*Not Recommended for 40 Yard Containers *Not Recommended for containers over 85" tall |
