MODEL: Mountain PT300

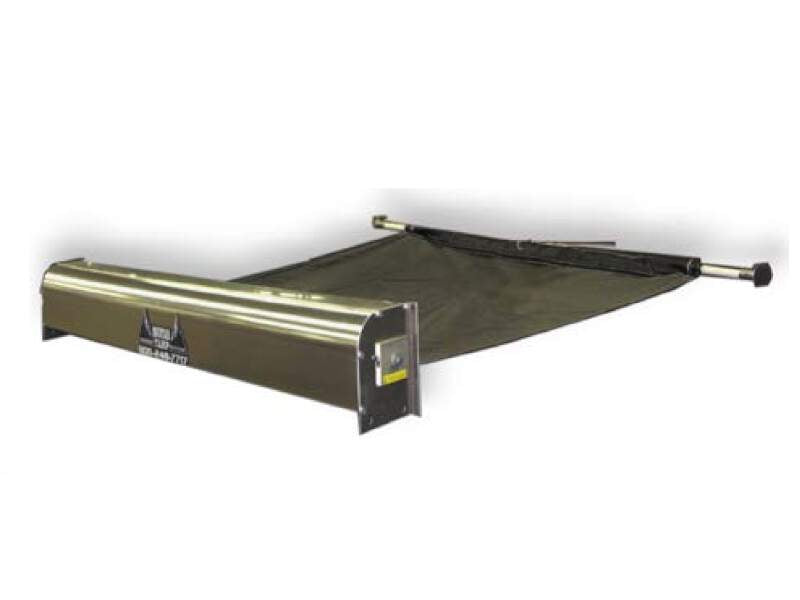

The Dump Shade Kit from Mountain is an economy system that fits most small body sizes and can hold up to 32’ of mesh tarp. Ideal for hauling gravel, sand, and landscaping material, the Dump Shade Kit ships with the tarp installed and spring tension set. This shade kit can be used on a dump body or a roll-off container.
Please note that the tarp comes pre-installed, but is sold as a separate add-on option due to prices varying by tarp size.
***PLEASE NOTE THAT THIS ITEM IS NOT RETURNABLE/EXCHANGEABLE AS IT IS CUSTOM MADE TO ORDER. PLEASE ENSURE THAT MOUNTING WIDTH MEASUREMENT IS ACCURATE AND, AS ALWAYS, FEEL FREE TO CONTACT US WITH ANY QUESTIONS PRIOR TO PLACING ORDER***
Note: Body width and length measurements must be in inches
Dump Shade Kit Features:
- Fits most small body requirements
- Heavy-duty compression spring provides continuous tension in covered or uncovered position
- Extruded aluminum housing and end plates mounted on cab shield of body
- Holds up to 32’ of mesh tarp
- Simple pull operation, window shade type function
- Ships with tarp installed, spring tension set, ready to install
- 1-year warranty on spring
Dump Shade Kit Includes:
- CDANSI-ROPE: Caution Label (ANSI) for Pull (Qty: 1)
- K0LOGO: Logo plate - New (Qty: 1)
- PT100: D/S 96" ROLLER ASSY (Qty: 1)
- PT109: Rope - 3/8 - Per Ft Dump Shade (Qty: 30)
- PT113: Dump Shade Caution Sticker (Qty: 1)
- PT209BD: DS Tarp Ramp Bolt On Driver (Qty: 1)
- PT209BP: DS Tarp Ramp Bolt On Passenger (Qty: 1)
- PT223: DS Pull Bar Cap with Set Screw (Qty: 2)
- PT245: DS Kit Assembly Bolt Bag (Qty: 1)
- PT253: DS Pull Bar Sleeve PVC 3" (Qty: 2)
- R0112RJ: Crank Retain J Hook Only Steel (Qty: 4)
- R0113: Tarp Strap 10" (Qty: 1)
- TNGBOWFT: TNG bow stock100 3/4" each (Qty: 1)
