MODELS: Donovan 1809414, 1809905

Part #	Kit Name	Box Width	Features
1809414	UT Tarp System™	86" to 104"	w/Crank-Locking Sprocket
1809905	UT Tarp System™ w/ Mounting Plates	86" to 104"	w/Crank-Locking Sprocket and Mounting Plates

The UT Tarp System™ from Donovan is a pull-style system and a perfect choice for landscapers and other light-duty body operators with bodies up to 23 ft in length; this system packs neatly in a UPS-shippable box with no over-length charges to deal with and installs quickly and easily. At install, the overall width of the system can be set from 86 to 104 inches right out of the box. The roll tube can be easily shortened to accommodate narrower bodies, if needed. Right off the shelf, the UT Tarp System™ kit bolts or welds directly to the bearing plates incorporated into most trailers and truck bodies. The UT Tarp System™ offers simple, secure operation and can be paired with any Donovan stock tarp materials.

The UT Tarp System™ ships with a pre-assembled crank handle. For bodies without a built in tarp system, the UT Tarp System™ with Mounting Plates kit (P/N 1809905) includes the mounting plates and fasteners you'll need to quickly and easily mount your new UT Tarp System.

To cover, pull tarp to back of body and tie off pull rope to brackets (provided). Locking-sprocket crank secures tarp. To uncover, untie pull rope and uncover using crank handle. One-piece and three-piece pull bar assemblies are available as options.

** The UT Tarp System does not come with a tarp unless you select to add one.**

View Installation Instructions

Standard Features:

"Tarp-Locking" Crank Handle
Molded HDPE End Caps
3-Piece Adjustable Width Aluminum Roller Bar
Heavy-Duty Bearings
Adjustable Width from 86" to 104"

Available Options:

Three Piece pull bar Kit w/ Hardware (Part #: 1809829)
Mounting Plate Kit w/ Hardware: for trailers and bodies that do not have pre-fabricated mounting holes for tarp system (Part #: 1809784)

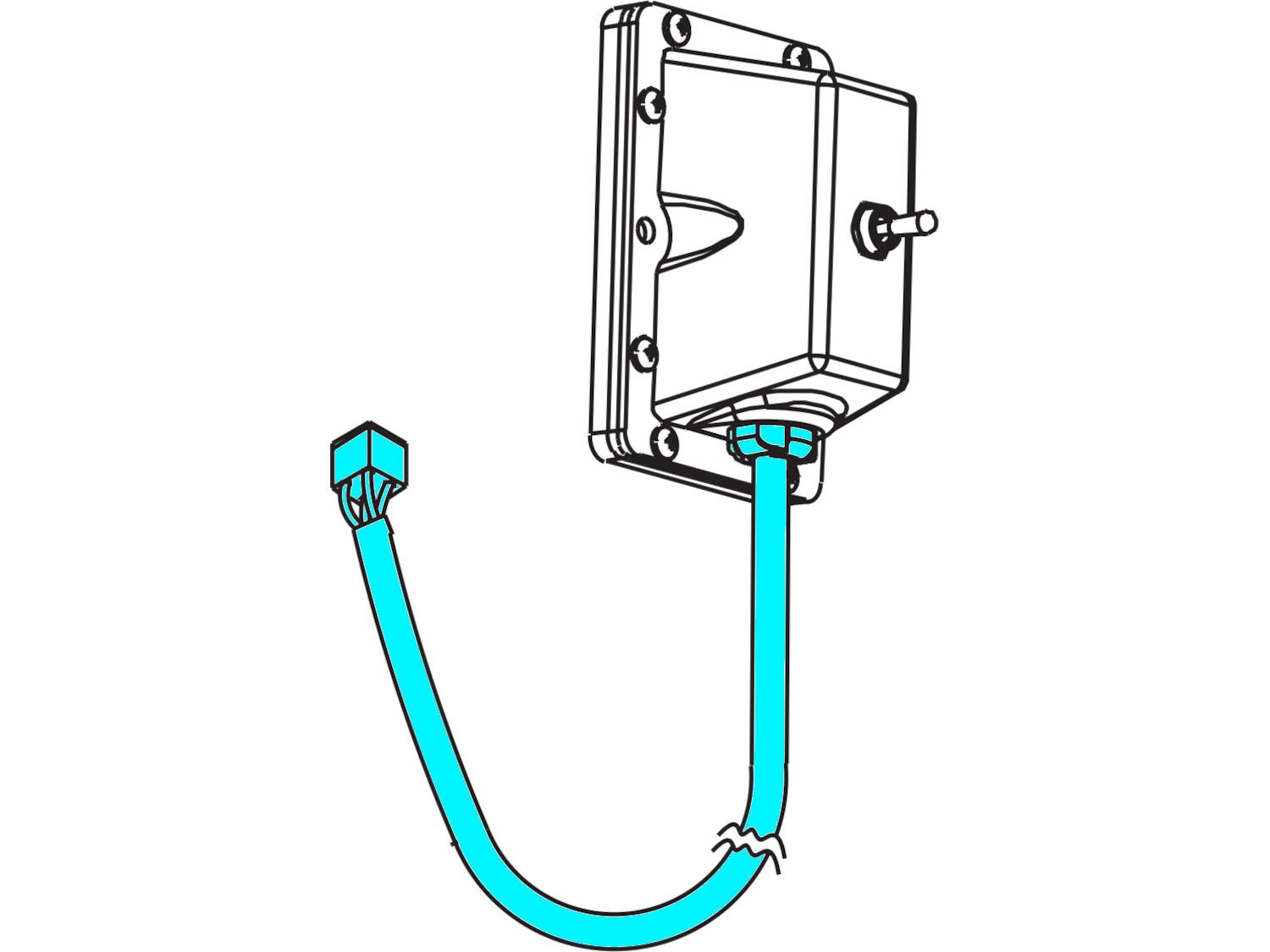

Driver Side Cord - Control Box End 1801365 | Donovan

MODEL: Donovan 1801365
