Electric Tarp Kit (Steel, 4-Spring) | Buyers Products

  • $1,116.00



MODEL: Buyers Products 5548000, 5548006

** THIS TARP SYSTEM IS CURRENTLY BUILT TO ORDER. PLEASE ALLOW AN ADDITIONAL 2-3 WEEKS FOR SHIPPING. **

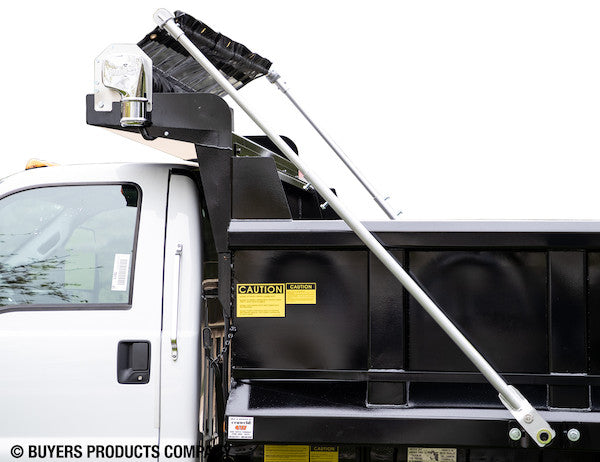

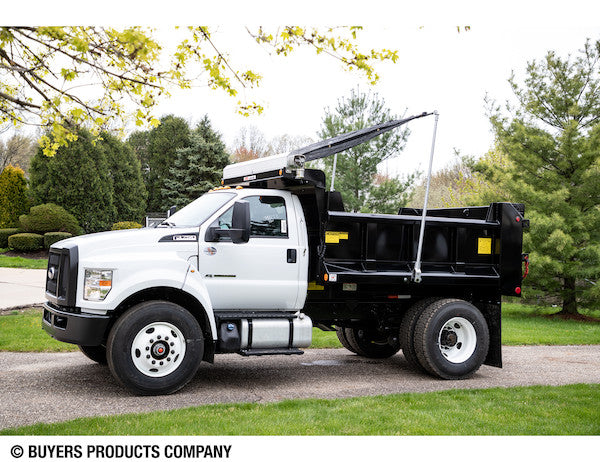

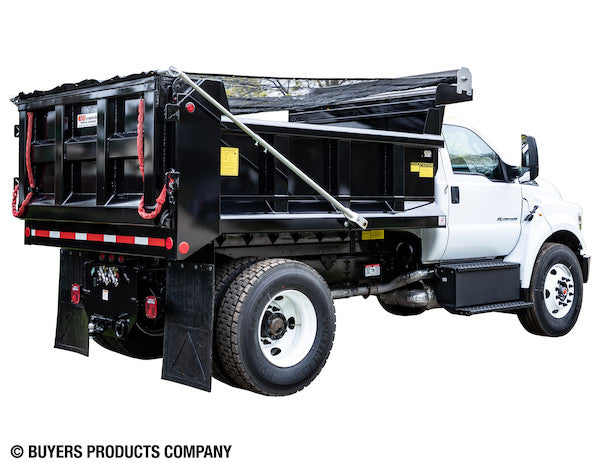

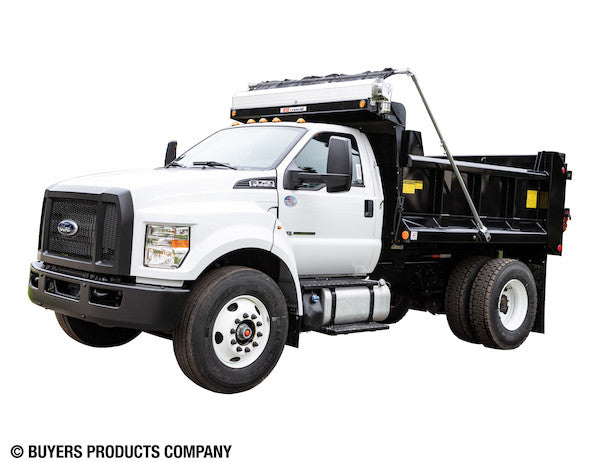

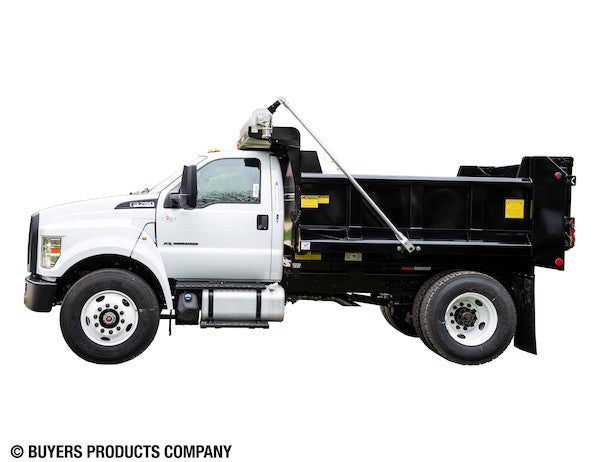

From gravel to asphalt, keep your payload in the truck and out of the weather. With strong, reliable technology and fingertip controls, the Side Mount Tarp System from Buyers Products has got you covered.

Each kit includes all necessary hardware to install a tarp system on a dump body. Kits are available in a number of sizes. Tarps sold separately.

Fits dump bodies between 8' and 19' in length.

Model #
Description Motor Motor Wty Max Length Wind Deflector
5548000

4-spring Electric Steel Tarp Kit

600W | 90:1 (standard) 1 yr 19' Yes
5548006
4-spring Electric Steel Tarp Kit
600W | 90:1 (standard)
1 yr
19' No

Standard Features:

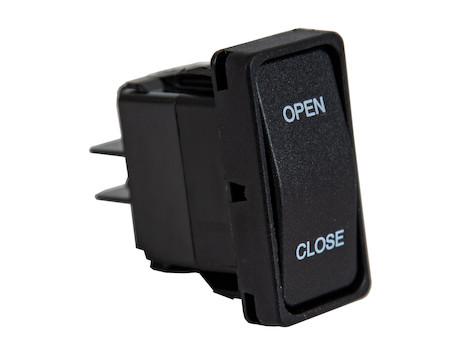

  • Fingertip electric controls for ease of operation
  • Sturdy weather and corrosion-resistant aluminum components for reliable performance, time after time
  • Fits dump bodies from 8 ft to 19 ft long

Specifications:

  • Arm Material: Steel

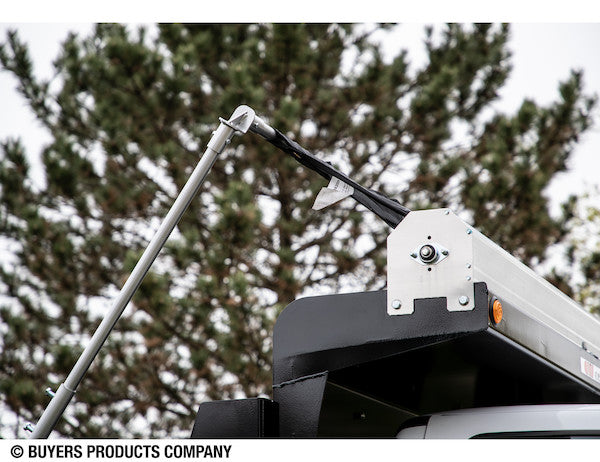

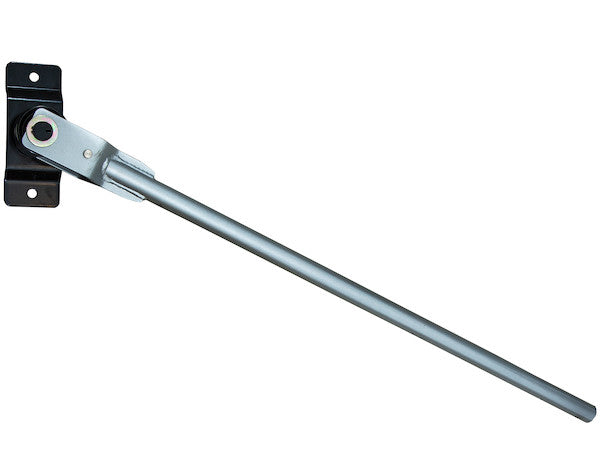

  • Arm Type: Telescoping

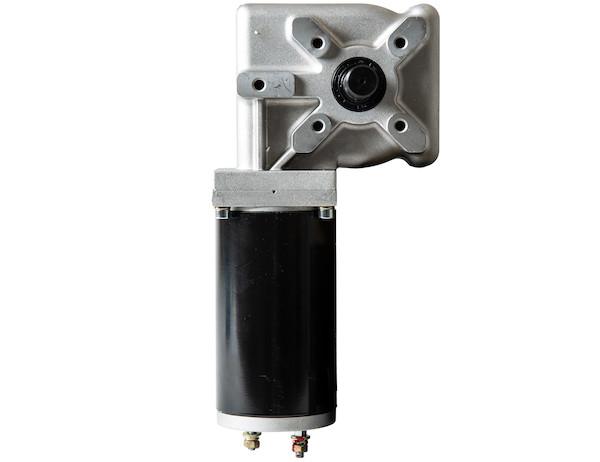

  • Motor Horsepower: 0.8 HP
  • Motor Output Shaft Length: 3.13"

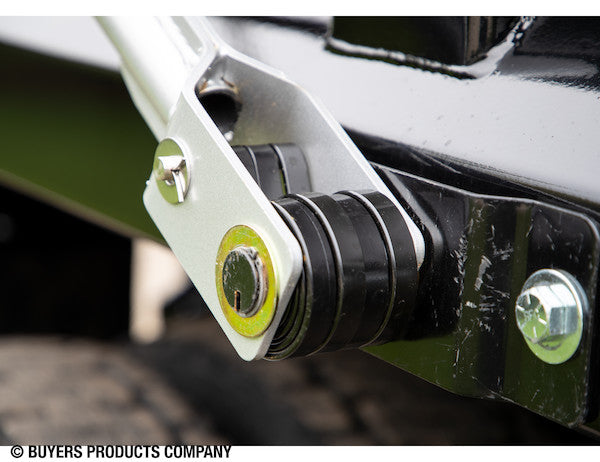

  • Number Of Springs Per Arm: 4
  • System Style: Electric Side Mount

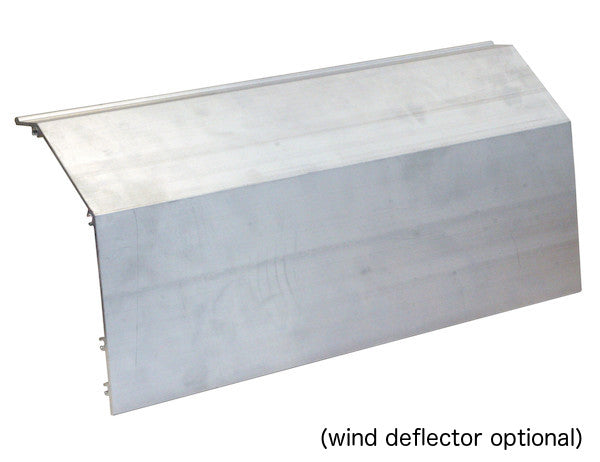

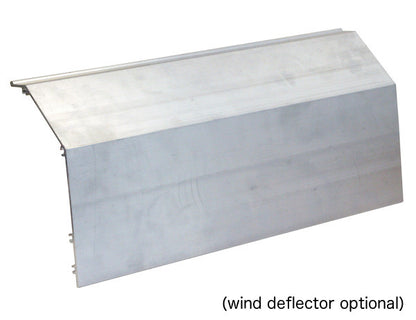

  • Wind Deflector Material: Aluminum
  • Dump Length Minimum: 8'
  • Motor Output Shaft Diameter: 0.75"
  • Motor Gear Ratio: 90:1
  • Motor Wattage: 600W
  • Wind Deflector Included: Optional
  • Motor Amperage: 50A

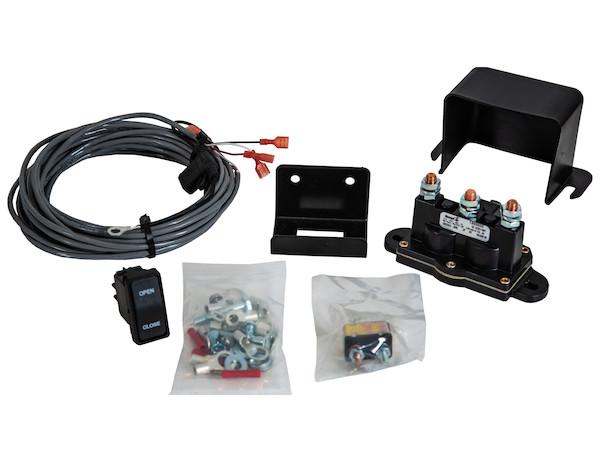

  • Motor Voltage: 12V DC
  • Motor Mounting Pattern: 5 Hole

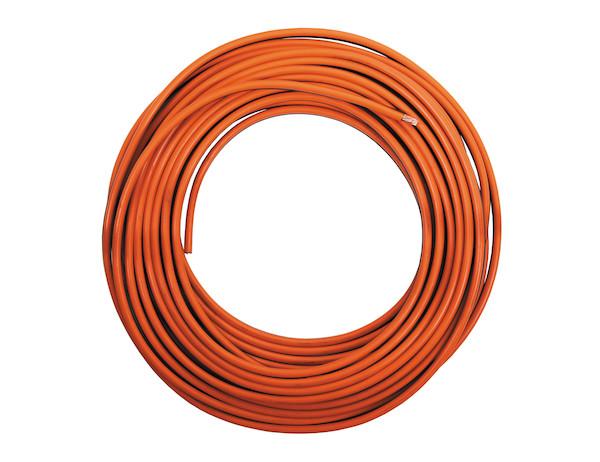

  • Wire Gauge: 8 Ga
  • Wire Length: 60'

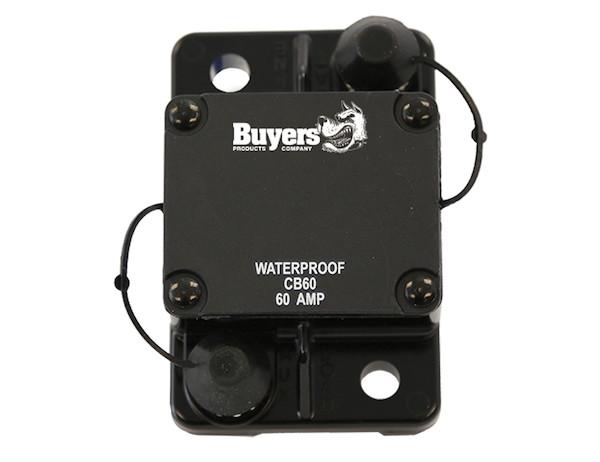

  • Circuit Breaker Amperage: 60 A
  • Solenoid Amperage: 150 A
  • Number Of Bumpers Included: 6
  • Dump Length Maximum: 19'
  • Wind Deflector Width: 98"
  • Tarp Included: No

Replaces:

  • Donovan 61X
  • Roll-Rite 1030-1031
  • US Tarp 11521-13655
  • Tarps & Beyond 5000XT90
