Bullet Aluminum Arm Assembly 1801595 | Donovan Tarps

  • $827.14



 MODEL: Donovan 1801595, 1805259

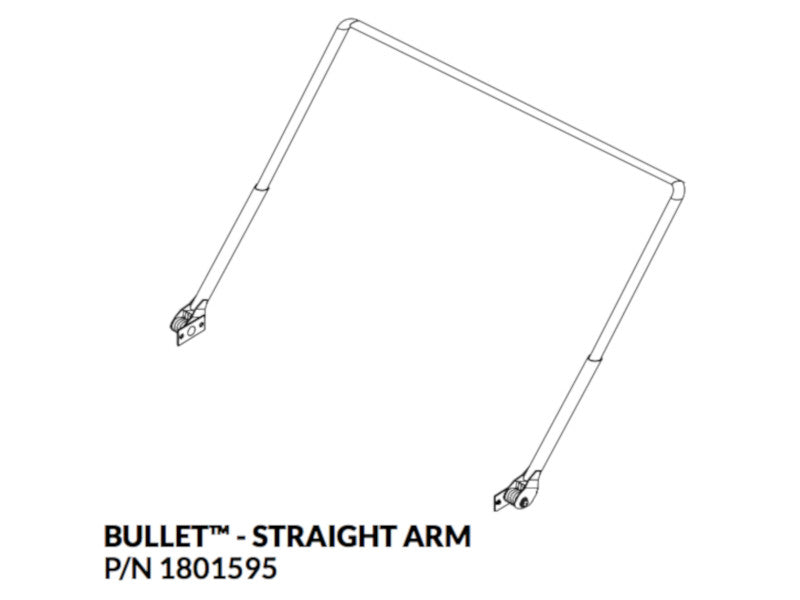

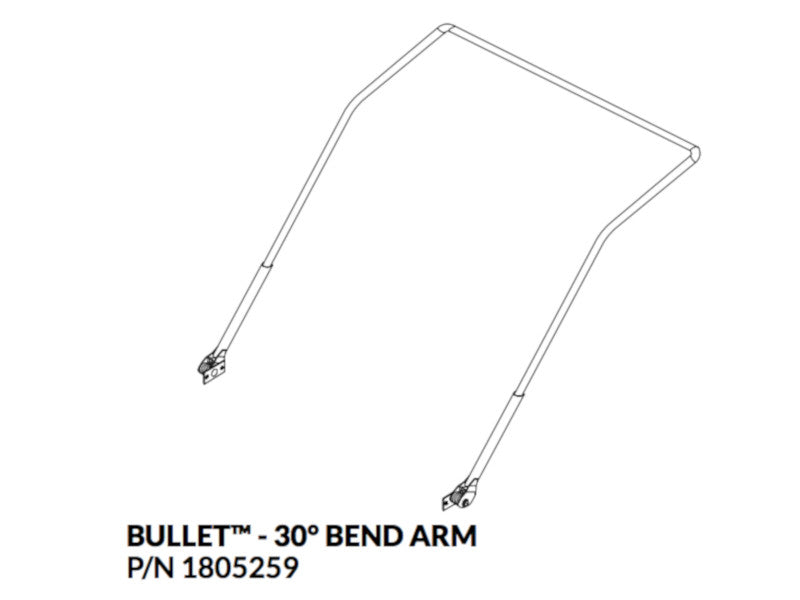

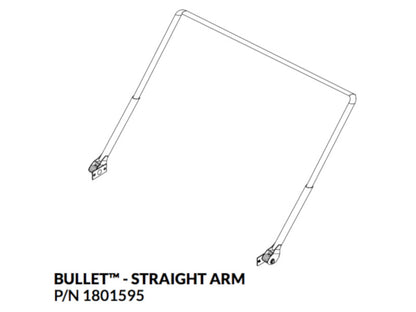

The Donovan Bullet™ replacement 4-spring arm assembly includes all necessary components for the “pin-to-pin” components of the system, also known as the “hoop kit”.   The 2-piece side arms are made from polished aluminum, with a 4-spring pivot assembly on each side.  Upper arms come choice of straight or with a 30-degree bend.

This system is ideal for boxes and trailers up to 23’ in length.

Please note that this kit does not include the tarp, tarp roller bar, tarp motor, or any of the electrical components.

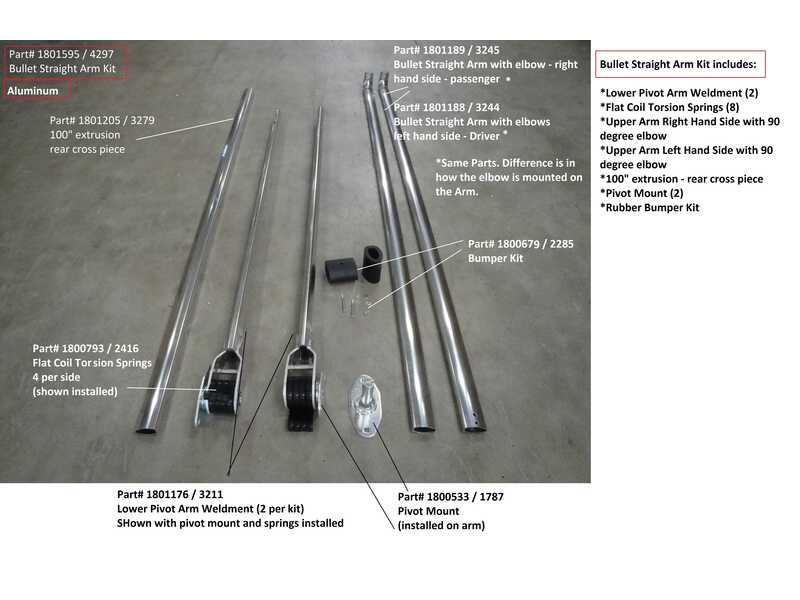

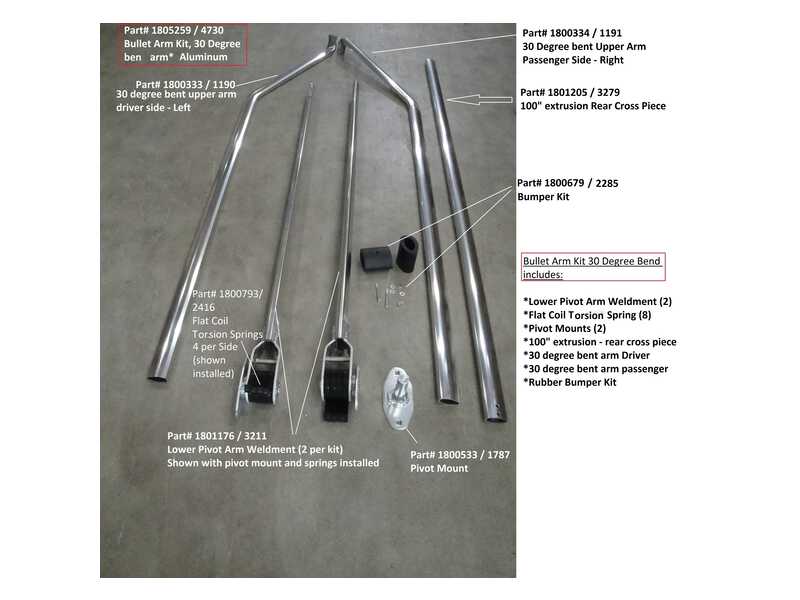

Tarp Arm Assembly Set Includes:

Item

Quantity

Spring Pivot Mount

2

Flat Coil Torsion Springs

8

Shim – 1 ¼” ID x .047

2

Retaining Ring – 1 ¼”

2

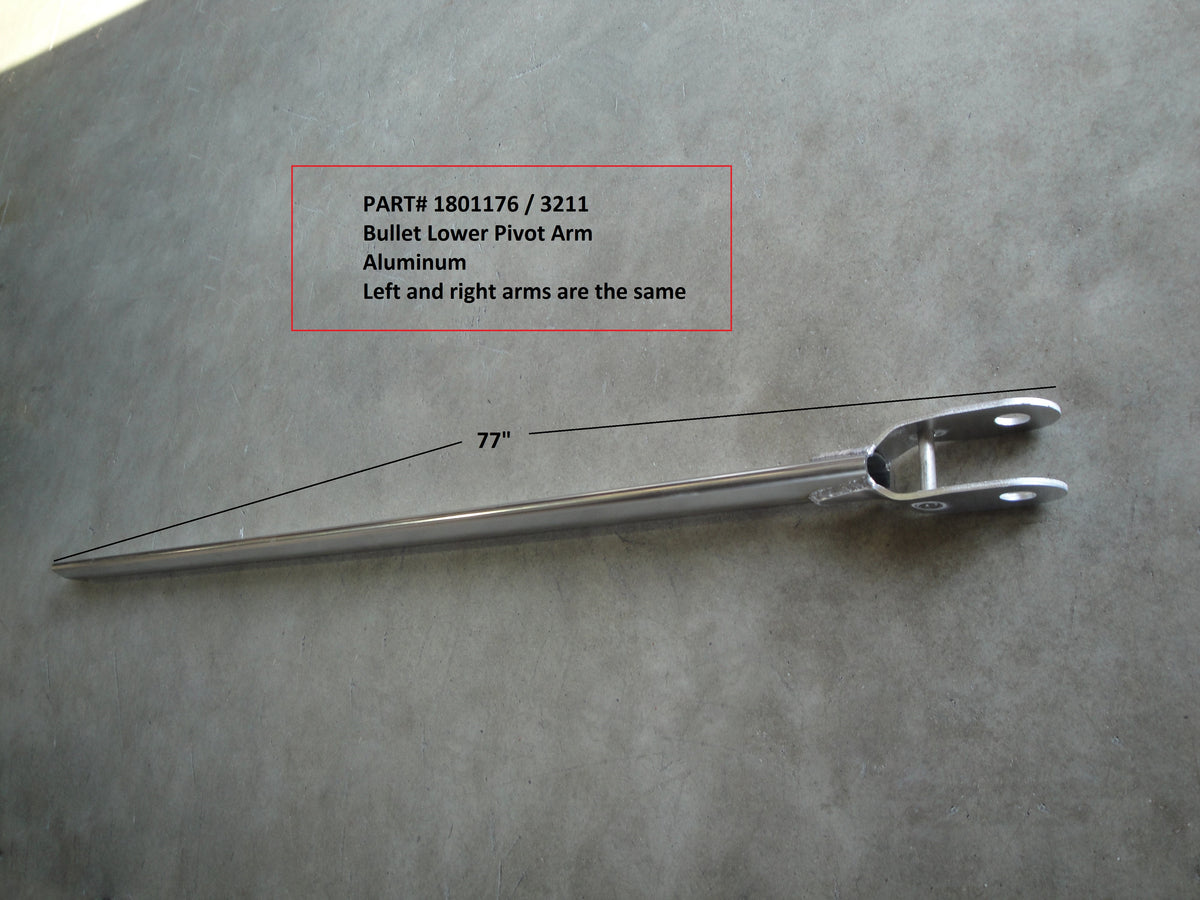

Polished Aluminum Lower Pivot Arm

2

Polished Aluminum Upper Arm

2

Shoulder Bolt - 1/4” x 1-1/4” 4
Tee Nut – 1/4-20 x 7/16” 4
90-degree Elbow – Aluminum Diecast 2

Aluminum Rear Cross Bar – 100”

1
